Step1: Product
Lumex Opto/Components Inc. SML-LXR1003RGBC-05

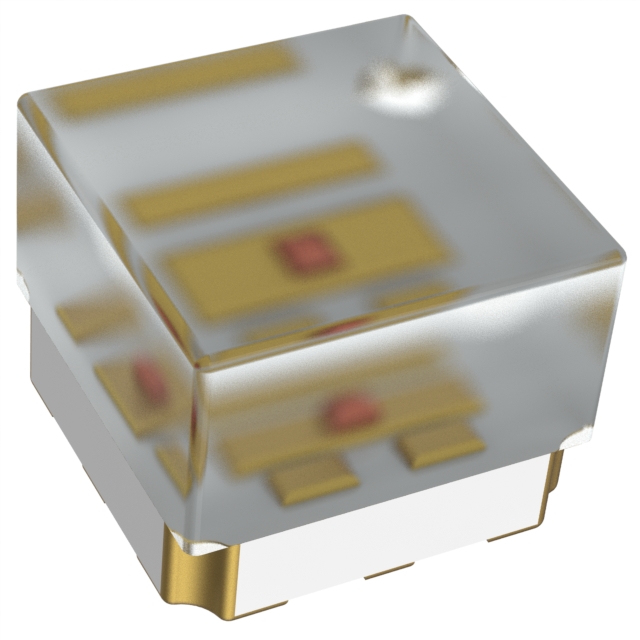

Image shown is a representation only
Manufacturer
Manufacturer No
SML-LXR1003RGBC-05
Package
4-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB CLEAR 4SMD
Detailed Description
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.8V Green, 2.8V Blue 4-SMD, No Lead
DataSheet
Mfr
Lumex Opto/Components Inc.
Color
Red, Green, Blue (RGB)
Lens Size
2.90mm x 0.80mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
1.48mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
130°
Current - Test
5mA
Package / Case
4-SMD, No Lead
Size / Dimension
2.70mm L x 0.80mm W
Lens Transparency
Clear
Wavelength - Peak
630nm Red, 520nm Green, 470nm Blue
Base Product Number
SML-LXR1003
Millicandela Rating
36mcd Red, 127mcd Green, 36mcd Blue
Supplier Device Package
4-SMD
Voltage - Forward (Vf) (Typ)
2V Red, 2.8V Green, 2.8V Blue
| Attribute | Value |
|---|---|
| Mfr | Lumex Opto/Components Inc. |
| Color | Red, Green, Blue (RGB) |
| Lens Size | 2.90mm x 0.80mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 1.48mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | 130° |
| Current - Test | 5mA |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 2.70mm L x 0.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm Red, 520nm Green, 470nm Blue |
| Base Product Number | SML-LXR1003 |
| Millicandela Rating | 36mcd Red, 127mcd Green, 36mcd Blue |
| Supplier Device Package | 4-SMD |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.8V Green, 2.8V Blue |
