Step1: Product
Littelfuse Inc. SP1003-01DTG

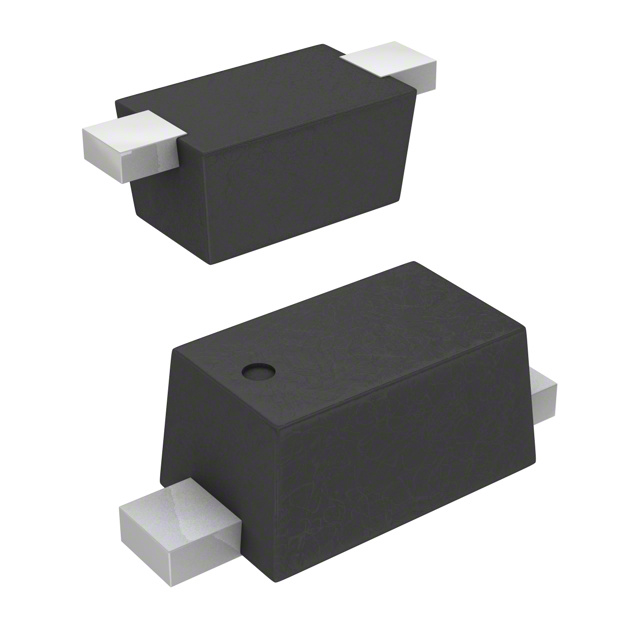

Image shown is a representation only
Manufacturer
Manufacturer No
SP1003-01DTG
Quantity
16170
Availability
In Stock
Package
SOD-723
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 5VWM 12VC SOD723
Detailed Description
12V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SOD-723
DataSheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SP1003, SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
SOD-723
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
No
Supplier Device Package
SOD-723
Unidirectional Channels
1
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
12V (Typ)
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
7A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SP1003, SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | SOD-723 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | SOD-723 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
