Step1: Product
Littelfuse Inc. SP1001-05XTG

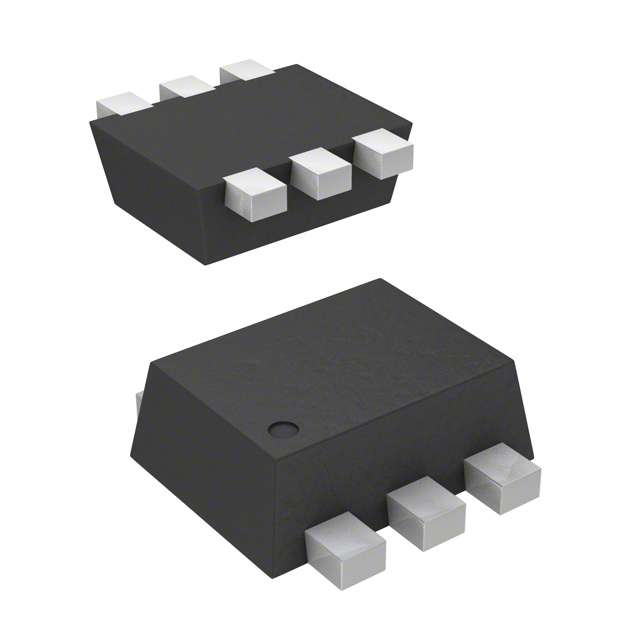

Image shown is a representation only
Manufacturer
Manufacturer No
SP1001-05XTG
Quantity
5,620
Availability
In Stock
Package
SOT-563, SOT-666
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5.5VWM 13VC SOT563
Detailed Description
13V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SOT-563
Datasheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SP1001, SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
SOT-563, SOT-666
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
No
Supplier Device Package
SOT-563
Unidirectional Channels
5
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) @ Ipp
13V
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SP1001, SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | SOT-563 |
| Unidirectional Channels | 5 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
