Step1: Product

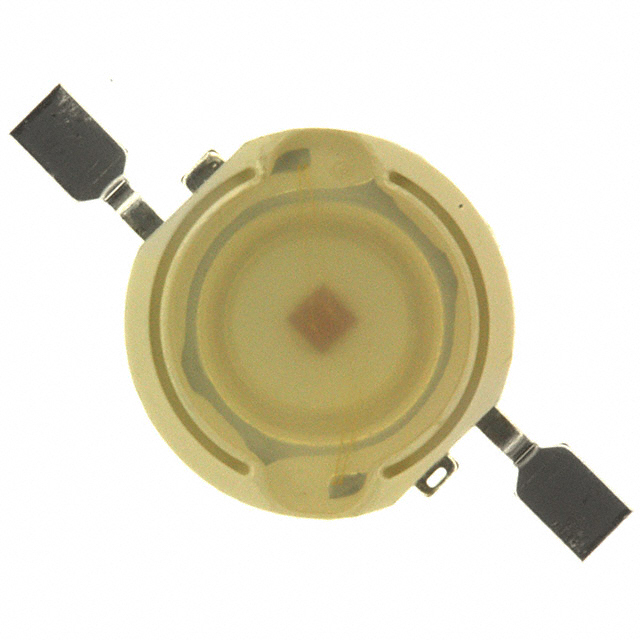

Lite-On Inc. LOPL-E001R
Image shown is a representation only
Manufacturer
Manufacturer No
LOPL-E001R
Package
2-SMD, Gull Wing Exposed Pad
Packaging
Tape & Reel (TR)
Description
LED LOPL RED 625NM SMD
Detailed Description
LED Lighting Color LOPL Red 625nm (Typ) 2-SMD, Gull Wing Exposed Pad
DataSheet
Mfr
Lite-On Inc.
Color
Red
Series
LOPL
Packaging
Tape & Reel (TR)
Wavelength
625nm (Typ)
Part Status
Obsolete
Current - Max
350mA
Mounting Type
Surface Mount
Viewing Angle
110°
Current - Test
350mA
Package / Case
2-SMD, Gull Wing Exposed Pad
Size / Dimension
0.315" Dia (8.00mm)
Temperature - Test
25°C
Base Product Number
LOPL-E001
Height - Seated (Max)
0.087" (2.20mm)
Supplier Device Package
SMD
Lumens/Watt @ Current - Test
41 lm/W
Voltage - Forward (Vf) (Typ)
2.57V
Thermal Resistance of Package
13.7°C/W
Luminous Flux @ Current/Temperature
37lm (Typ)
| Attribute | Value |
|---|---|
| Mfr | Lite-On Inc. |
| Color | Red |
| Series | LOPL |
| Packaging | Tape & Reel (TR) |
| Wavelength | 625nm (Typ) |
| Part Status | Obsolete |
| Current - Max | 350mA |
| Mounting Type | Surface Mount |
| Viewing Angle | 110° |
| Current - Test | 350mA |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Temperature - Test | 25°C |
| Base Product Number | LOPL-E001 |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 41 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.57V |
| Thermal Resistance of Package | 13.7°C/W |
| Luminous Flux @ Current/Temperature | 37lm (Typ) |
