Step1: Product

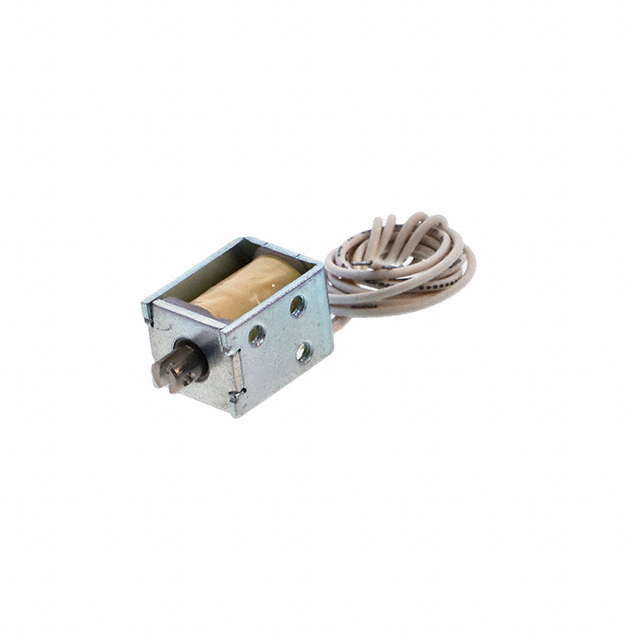

Ledex Dormeyer Saia, a Division of Johnson Electric B17-255-A-1
Image shown is a representation only
Manufacturer No
B17-255-A-1
Packaging
Bulk
Description
SOLENOID PULL INTERMITTENT 12V
Detailed Description
Intermittent Duty Solenoid Open Frame (Pull) Type 0.180" (4.57mm) Stroke 12VDC Chassis Mount
DataSheet
Type
Open Frame (Pull)
Packaging
Bulk
Duty Cycle
Intermittent
Technology
Electromechanical
Part Status
Active
Manufacturer
Ledex Dormeyer Saia, a Division of Johnson Electric
Shaft Detail
Clevis
Mounting Type
Chassis Mount
Power (Watts)
6.4 W
Stroke Length
0.180" (4.57mm)
Voltage - Rated
12VDC
Diameter - Shaft
0.190" (4.83mm)
Size / Dimension
0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm)
Termination Style
Wire Leads
Base Product Number
B17-255
DC Resistance (DCR)
21.9Ohm
| Attribute | Value |
|---|---|
| Type | Open Frame (Pull) |
| Packaging | Bulk |
| Duty Cycle | Intermittent |
| Technology | Electromechanical |
| Part Status | Active |
| Manufacturer | Ledex Dormeyer Saia, a Division of Johnson Electric |
| Shaft Detail | Clevis |
| Mounting Type | Chassis Mount |
| Power (Watts) | 6.4 W |
| Stroke Length | 0.180" (4.57mm) |
| Voltage - Rated | 12VDC |
| Diameter - Shaft | 0.190" (4.83mm) |
| Size / Dimension | 0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm) |
| Termination Style | Wire Leads |
| Base Product Number | B17-255 |
| DC Resistance (DCR) | 21.9Ohm |
