Step1: Product

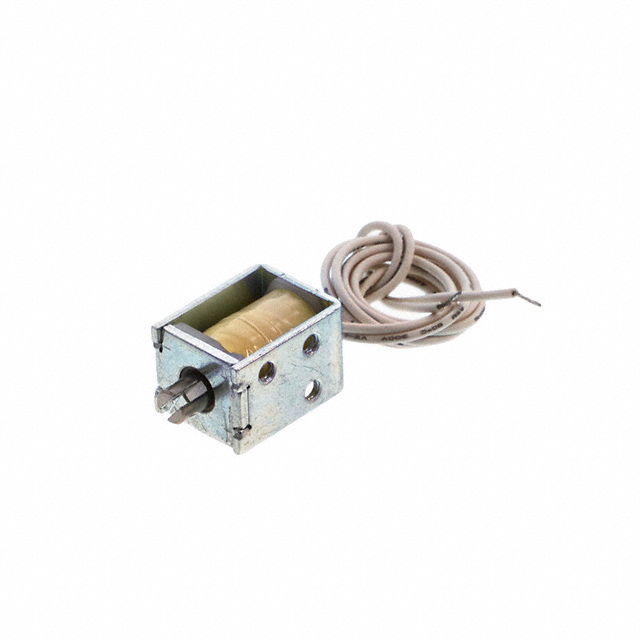

Ledex Dormeyer Saia, a Division of Johnson Electric B17-254-A-1
Image shown is a representation only
Manufacturer No
B17-254-A-1
Packaging
Bulk
Description
OPEN FRAME SOLENOID B17 - 12 VDC
Detailed Description
Duty Solenoid Open Frame (Pull) Type 0.100" (2.54mm) Stroke Chassis Mount
DataSheet
Type
Open Frame (Pull)
Packaging
Bulk
Technology
Electromechanical
Part Status
Active
Manufacturer
Ledex Dormeyer Saia, a Division of Johnson Electric
Shaft Detail
Clevis
Mounting Type
Chassis Mount
Stroke Length
0.100" (2.54mm)
Diameter - Shaft
0.190" (4.83mm)
Size / Dimension
0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm)
Termination Style
Wire Leads
Base Product Number
B17-254
DC Resistance (DCR)
89Ohm
| Attribute | Value |
|---|---|
| Type | Open Frame (Pull) |
| Packaging | Bulk |
| Technology | Electromechanical |
| Part Status | Active |
| Manufacturer | Ledex Dormeyer Saia, a Division of Johnson Electric |
| Shaft Detail | Clevis |
| Mounting Type | Chassis Mount |
| Stroke Length | 0.100" (2.54mm) |
| Diameter - Shaft | 0.190" (4.83mm) |
| Size / Dimension | 0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm) |
| Termination Style | Wire Leads |
| Base Product Number | B17-254 |
| DC Resistance (DCR) | 89Ohm |
