Step1: Product

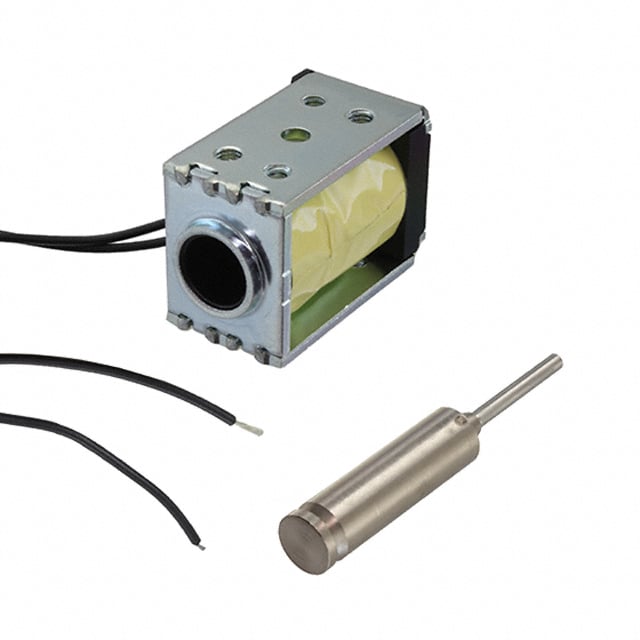

Ledex Dormeyer Saia, a Division of Johnson Electric B14HDP-253-B-4
Image shown is a representation only
Manufacturer No
B14HDP-253-B-4
Packaging
Bulk
Description
SOLENOID PUSH CONTINUOUS 24V
Detailed Description
Continuous Duty Solenoid Open Frame (Push) Type 0.500" (12.70mm) Stroke 24VDC Chassis Mount
DataSheet
Type
Open Frame (Push)
Packaging
Bulk
Duty Cycle
Continuous
Technology
Electromechanical
Part Status
Active
Manufacturer
Ledex Dormeyer Saia, a Division of Johnson Electric
Shaft Detail
Groove
Mounting Type
Chassis Mount
Power (Watts)
5.5 W
Stroke Length
0.500" (12.70mm)
Voltage - Rated
24VDC
Diameter - Shaft
0.390" (9.91mm)
Size / Dimension
1.460" L x 0.790" W x 1.020" H (37.08mm x 20.07mm x 25.91mm)
Termination Style
Wire Leads
Base Product Number
B14HD
DC Resistance (DCR)
110.2Ohm
| Attribute | Value |
|---|---|
| Type | Open Frame (Push) |
| Packaging | Bulk |
| Duty Cycle | Continuous |
| Technology | Electromechanical |
| Part Status | Active |
| Manufacturer | Ledex Dormeyer Saia, a Division of Johnson Electric |
| Shaft Detail | Groove |
| Mounting Type | Chassis Mount |
| Power (Watts) | 5.5 W |
| Stroke Length | 0.500" (12.70mm) |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.390" (9.91mm) |
| Size / Dimension | 1.460" L x 0.790" W x 1.020" H (37.08mm x 20.07mm x 25.91mm) |
| Termination Style | Wire Leads |
| Base Product Number | B14HD |
| DC Resistance (DCR) | 110.2Ohm |
