Step1: Product
Ledex Dormeyer Saia, a Division of Johnson Electric 195206-231

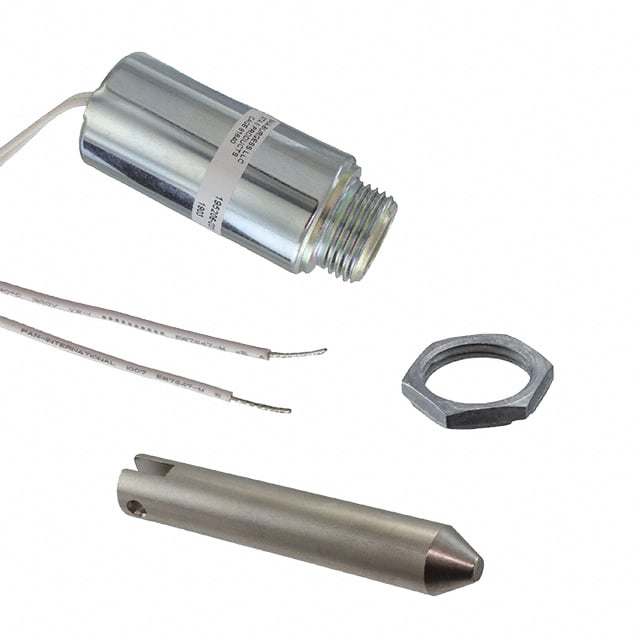

Image shown is a representation only
Manufacturer No
195206-231
Packaging
Bulk
Description
SOLENOID PULL CONTINUOUS 24V
Detailed Description
Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.625" (15.88mm) Stroke 24VDC Panel Mount
DataSheet
Type
Closed Frame (Pull), Tubular
Series
STA
Packaging
Bulk
Duty Cycle
Continuous
Technology
Electromechanical
Part Status
Active
Manufacturer
Ledex Dormeyer Saia, a Division of Johnson Electric
Shaft Detail
Clevis
Mounting Type
Panel Mount
Power (Watts)
7.4 W
Stroke Length
0.625" (15.88mm)
Bushing Thread
3/4-16 UNF
Voltage - Rated
24VDC
Diameter - Shaft
0.438" (11.13mm)
Size / Dimension
1.000" Dia x 2.000" L (25.40mm x 50.80mm)
Termination Style
Wire Leads
Base Product Number
195206
DC Resistance (DCR)
77.4Ohm
| Attribute | Value |
|---|---|
| Type | Closed Frame (Pull), Tubular |
| Series | STA |
| Packaging | Bulk |
| Duty Cycle | Continuous |
| Technology | Electromechanical |
| Part Status | Active |
| Manufacturer | Ledex Dormeyer Saia, a Division of Johnson Electric |
| Shaft Detail | Clevis |
| Mounting Type | Panel Mount |
| Power (Watts) | 7.4 W |
| Stroke Length | 0.625" (15.88mm) |
| Bushing Thread | 3/4-16 UNF |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.438" (11.13mm) |
| Size / Dimension | 1.000" Dia x 2.000" L (25.40mm x 50.80mm) |
| Termination Style | Wire Leads |
| Base Product Number | 195206 |
| DC Resistance (DCR) | 77.4Ohm |
