Step1: Product
KYOCERA AVX PD100MYN18

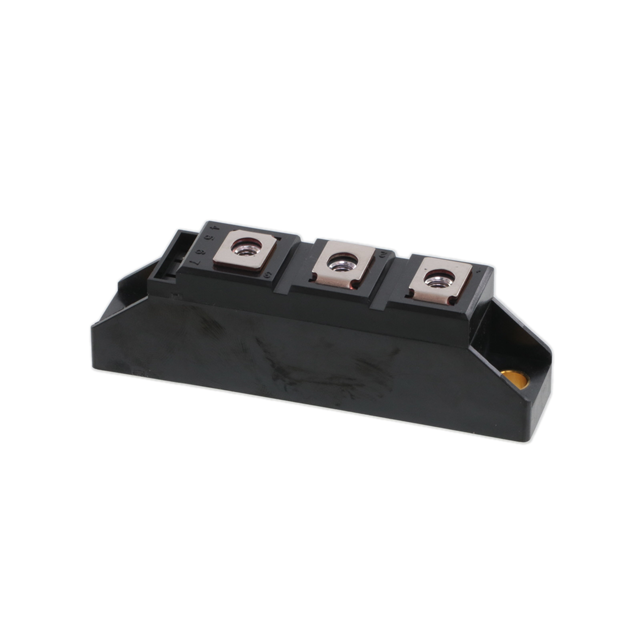

Image shown is a representation only
Manufacturer
Manufacturer No
PD100MYN18
Package
Module
Packaging
Bulk
Description
DIODE MOD GP 1800V 100A MOD
Detailed Description
Diode Array 1 Pair Series Connection 1800 V 100A Chassis Mount Module
Datasheet
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Bulk
Technology
Standard
Manufacturer
KYOCERA AVX
Mounting Type
Chassis Mount
Package / Case
Module
Base Product Number
PD100
Diode Configuration
1 Pair Series Connection
Supplier Device Package
Module
Current - Reverse Leakage @ Vr
5 mA @ 1800 V
Voltage - DC Reverse (Vr) (Max)
1800 V
Operating Temperature - Junction
-40°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.35 V @ 300 A
Current - Average Rectified (Io) (per Diode)
100A
| Attribute | Value |
|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Standard |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Base Product Number | PD100 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | Module |
| Current - Reverse Leakage @ Vr | 5 mA @ 1800 V |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 300 A |
| Current - Average Rectified (Io) (per Diode) | 100A |
