Step1: Product

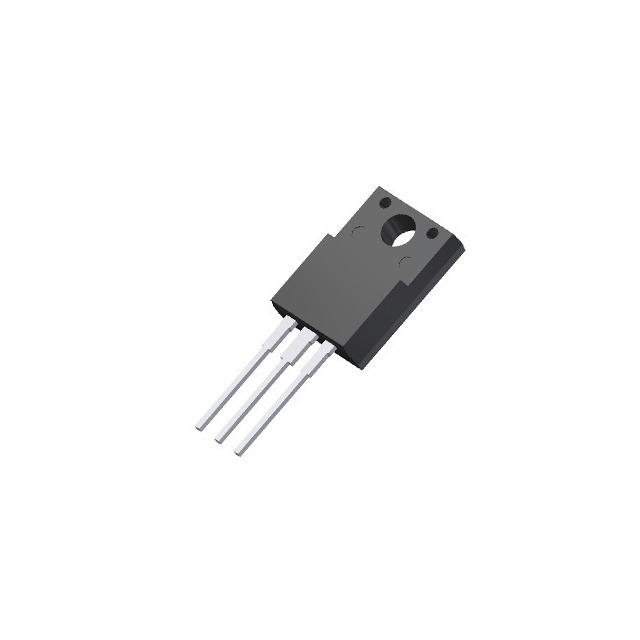

KYOCERA AVX FCH10A15
Image shown is a representation only
Manufacturer
Manufacturer No
FCH10A15
Package
TO-220-3 Full Pack
Packaging
Tube
Description
DIODE ARR SCHOTTKY 150V TO220 FM
Detailed Description
Diode Array 150 V 10A Through Hole TO-220-3 Full Pack
DataSheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Tube
Technology
Schottky
Part Status
Discontinued at DigiKey
Manufacturer
KYOCERA AVX
Mounting Type
Through Hole
Package / Case
TO-220-3 Full Pack
Base Product Number
FCH10
Supplier Device Package
TO-220 Full-Mold
Current - Reverse Leakage @ Vr
1 mA @ 150 V
Voltage - DC Reverse (Vr) (Max)
150 V
Operating Temperature - Junction
-40°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
880 mV @ 5 A
Current - Average Rectified (Io) (per Diode)
10A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Tube |
| Technology | Schottky |
| Part Status | Discontinued at DigiKey |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | FCH10 |
| Supplier Device Package | TO-220 Full-Mold |
| Current - Reverse Leakage @ Vr | 1 mA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 880 mV @ 5 A |
| Current - Average Rectified (Io) (per Diode) | 10A |
