Step1: Product

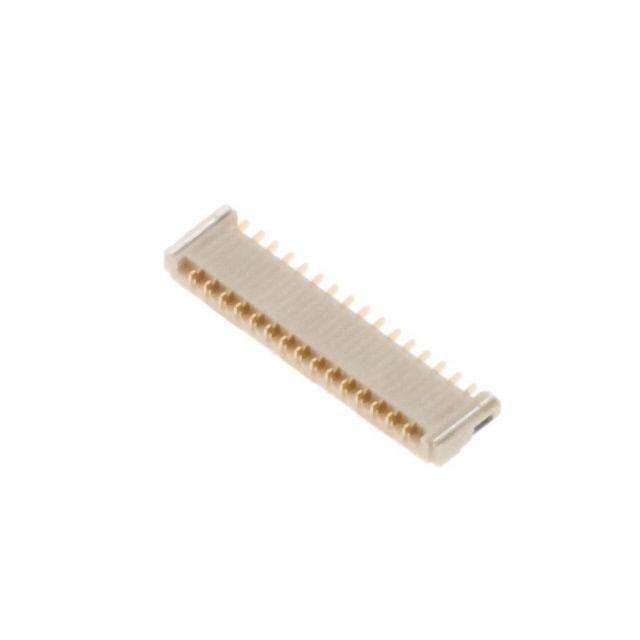

KYOCERA AVX 046844731002846+
Image shown is a representation only
Manufacturer
Manufacturer No
046844731002846+
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FPC BOTTOM 31POS 0.3MM R/A
Detailed Description
31 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
DataSheet
Pitch
0.012" (0.30mm)
Series
6844, Kyocera
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
KYOCERA AVX
Housing Color
White
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Plastic
Actuator Material
Plastic
FFC, FCB Thickness
0.20mm
Height Above Board
0.037" (0.95mm)
Number of Positions
31
Current Rating (Amps)
0.2A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | 6844, Kyocera |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | KYOCERA AVX |
| Housing Color | White |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.037" (0.95mm) |
| Number of Positions | 31 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 HB |
