Step1: Product
KYOCERA AVX 046841027100846+

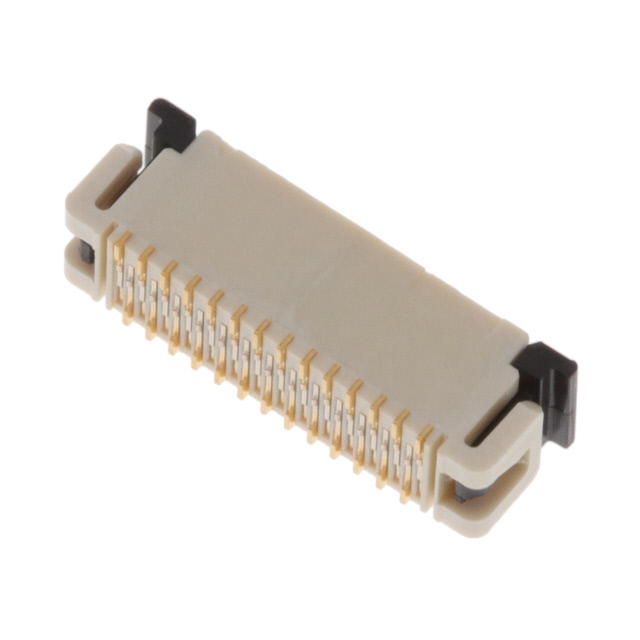

Image shown is a representation only
Manufacturer
Manufacturer No
046841027100846+
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC VERT 27POS 0.3MM SMD
Detailed Description
27 Position FPC Connector Contacts, Vertical - 1 Sided 0.012" (0.30mm) Surface Mount
Datasheet
Pitch
0.012" (0.30mm)
Series
6841, Kyocera
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
KYOCERA AVX
Mounting Type
Surface Mount
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Copper Alloy
Housing Material
Plastic
FFC, FCB Thickness
0.20mm
Height Above Board
0.142" (3.60mm)
Number of Positions
27
Current Rating (Amps)
0.2A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | 6841, Kyocera |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Surface Mount |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.142" (3.60mm) |
| Number of Positions | 27 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
