Step1: Product
KYOCERA AVX 046817620000846+

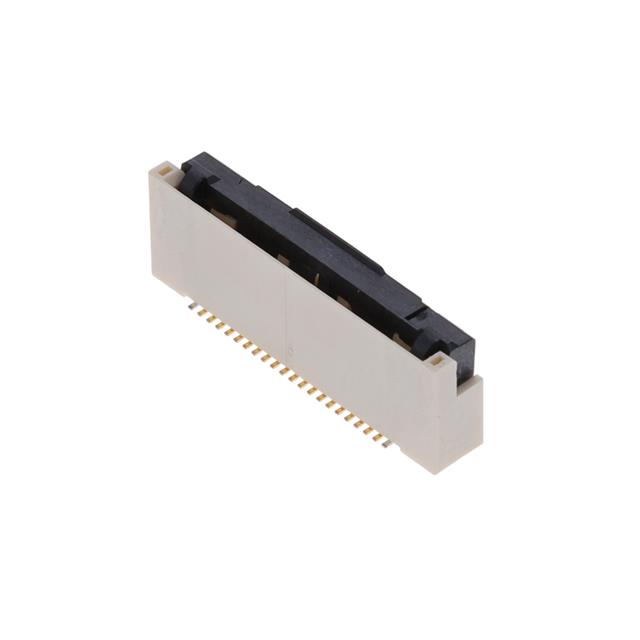

Image shown is a representation only
Manufacturer
Manufacturer No
046817620000846+
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC VERT 20POS 0.5MM SMD
Detailed Description
20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
Pitch
0.020" (0.50mm)
Series
6817, Kyocera
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
KYOCERA AVX
Mounting Type
Surface Mount
Cable End Type
Notched, Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Contact Material
Copper Alloy
Housing Material
Plastic
FFC, FCB Thickness
0.30mm
Height Above Board
0.209" (5.30mm)
Number of Positions
20
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | 6817, Kyocera |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Surface Mount |
| Cable End Type | Notched, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.209" (5.30mm) |
| Number of Positions | 20 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
