Step1: Product
KYOCERA AVX 046810610003846+

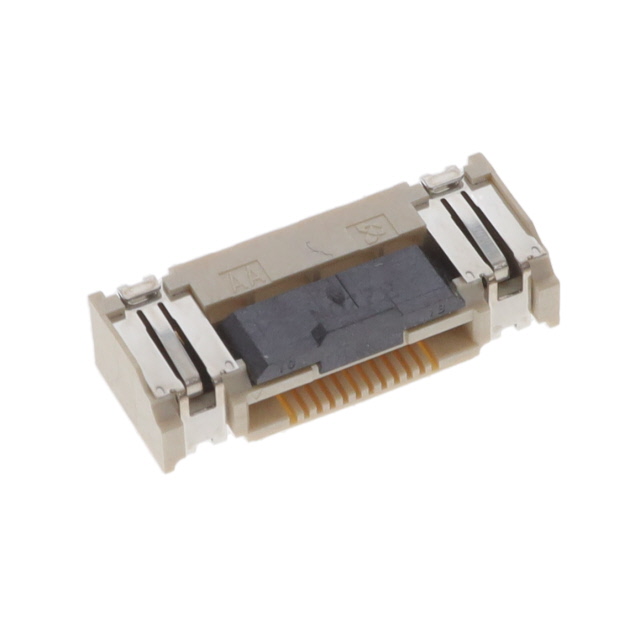

Image shown is a representation only
Manufacturer
Manufacturer No
046810610003846+
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FFC BOTTOM 10POS 0.5MM R/A
Detailed Description
10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
6810, Kyocera
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
KYOCERA AVX
Mounting Type
Surface Mount, Right Angle
Cable End Type
Notched, Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Contact Material
Copper Alloy
Housing Material
Plastic
FFC, FCB Thickness
0.30mm
Height Above Board
0.159" (4.04mm)
Number of Positions
10
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 125°C
Connector/Contact Type
Contacts, Bottom
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | 6810, Kyocera |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Notched, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.159" (4.04mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 125°C |
| Connector/Contact Type | Contacts, Bottom |
