Step1: Product

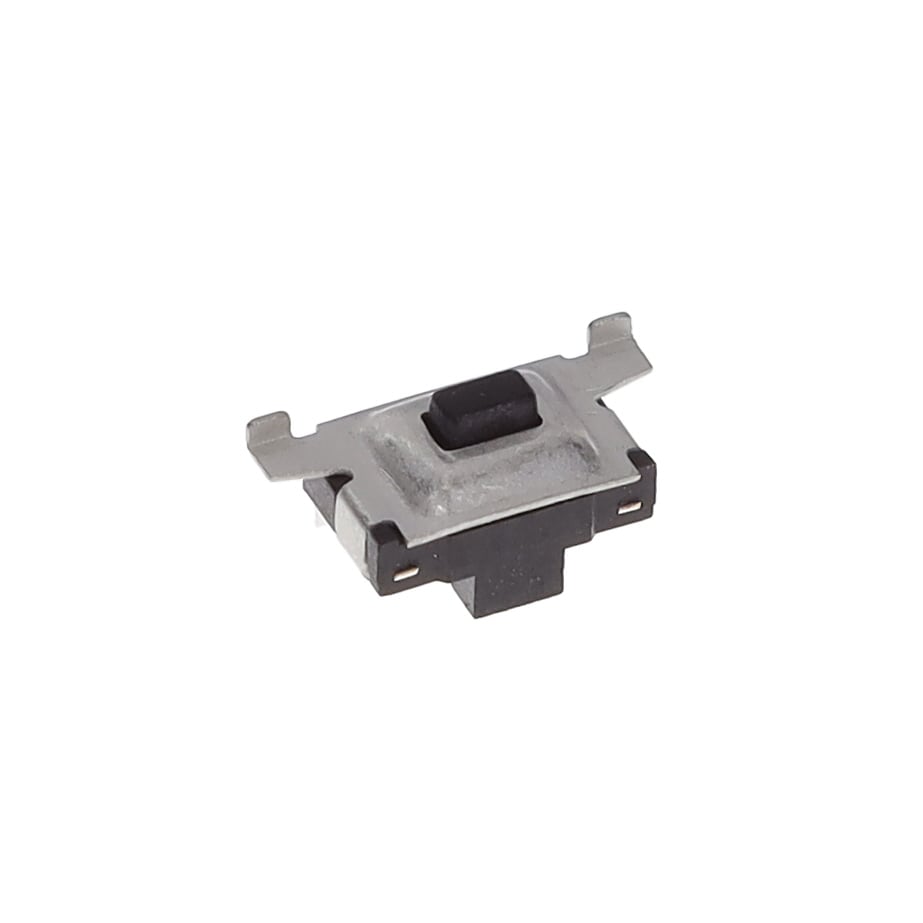

Knitter-Switch TSS 4 RA
Image shown is a representation only
Manufacturer
Manufacturer No
TSS 4 RA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACT 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
DataSheet
Mfr
Knitter-Switch
Series
TSS
Circuit
SPST-NO
Outline
7.20mm x 3.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Surface Mount, Right Angle
Switch Travel
0.15mm
Operating Force
220gf
Switch Function
Off-Mom
Actuator Material
Polyamide (PA9T), Nylon 9T
Termination Style
Gull Wing
Base Product Number
TSS 4
Actuator Orientation
Side Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Length, Right Angle
3.50mm
| Attribute | Value |
|---|---|
| Mfr | Knitter-Switch |
| Series | TSS |
| Circuit | SPST-NO |
| Outline | 7.20mm x 3.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Switch Travel | 0.15mm |
| Operating Force | 220gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyamide (PA9T), Nylon 9T |
| Termination Style | Gull Wing |
| Base Product Number | TSS 4 |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Length, Right Angle | 3.50mm |
