Step1: Product

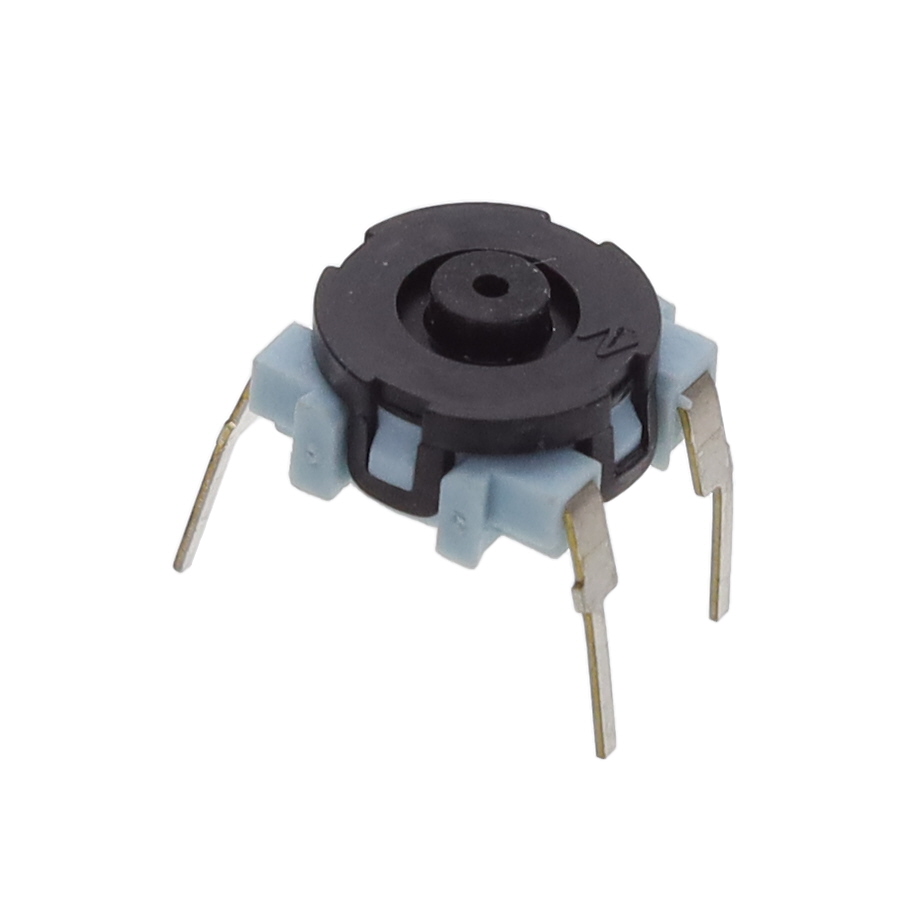

Knitter-Switch TMP 1-1
Image shown is a representation only
Manufacturer
Manufacturer No
TMP 1-1
Packaging
Tube
Description
SWITCH TACT OFF - MOM
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
DataSheet
Mfr
Knitter-Switch
Series
TMP
Circuit
SPST-NO
Outline
7.60mm x 7.60mm
Packaging
Tube
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
0.45mm
Mechanical Life
1,000,000 Cycles
Operating Force
459gf
Switch Function
Off-Mom
Actuator Material
Silicone Rubber
Termination Style
PC Pin
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
TMP 1
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.02A @ 50VDC
Actuator Height off PCB, Vertical
4.85mm
| Attribute | Value |
|---|---|
| Mfr | Knitter-Switch |
| Series | TMP |
| Circuit | SPST-NO |
| Outline | 7.60mm x 7.60mm |
| Packaging | Tube |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.45mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 459gf |
| Switch Function | Off-Mom |
| Actuator Material | Silicone Rubber |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | TMP 1 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.02A @ 50VDC |
| Actuator Height off PCB, Vertical | 4.85mm |
