Step1: Product

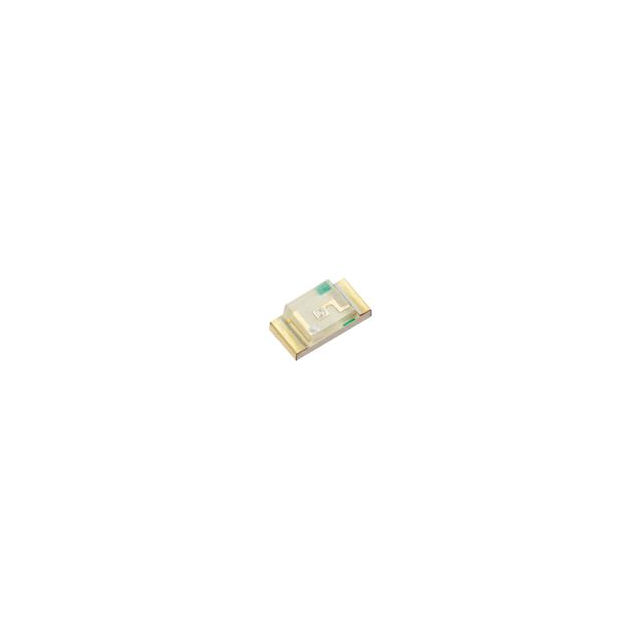

Kingbright AP3216SYD

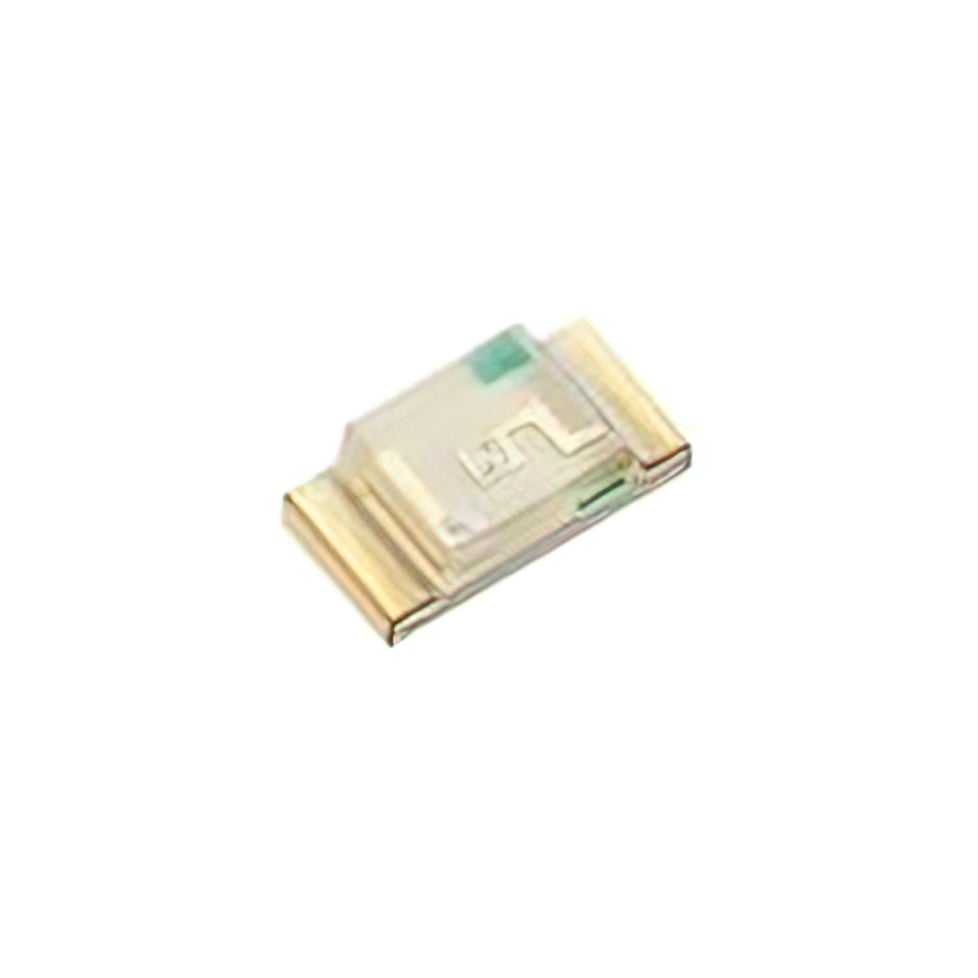

Image shown is a representation only
Manufacturer
Manufacturer No
AP3216SYD
Package
1206 (3216 Metric)
Packaging
Bulk
Description
LED YELLOW DIFFUSED 1206 SMD
Detailed Description
Yellow 588nm LED Indication - Discrete 2V 1206 (3216 Metric)
DataSheet
Mfr
Kingbright
Color
Yellow
Lens Size
2.00mm x 1.60mm
Packaging
Bulk
Lens Color
Yellow
Lens Style
Rectangle with Flat Top
Part Status
Obsolete
Height (Max)
1.10mm
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.60mm W
Lens Transparency
Diffused
Wavelength - Peak
590nm
Millicandela Rating
150mcd
Wavelength - Dominant
588nm
Supplier Device Package
1206
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | Kingbright |
| Color | Yellow |
| Lens Size | 2.00mm x 1.60mm |
| Packaging | Bulk |
| Lens Color | Yellow |
| Lens Style | Rectangle with Flat Top |
| Part Status | Obsolete |
| Height (Max) | 1.10mm |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 590nm |
| Millicandela Rating | 150mcd |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 2V |
