Step1: Product
KEMET SSRH7HS-M06185

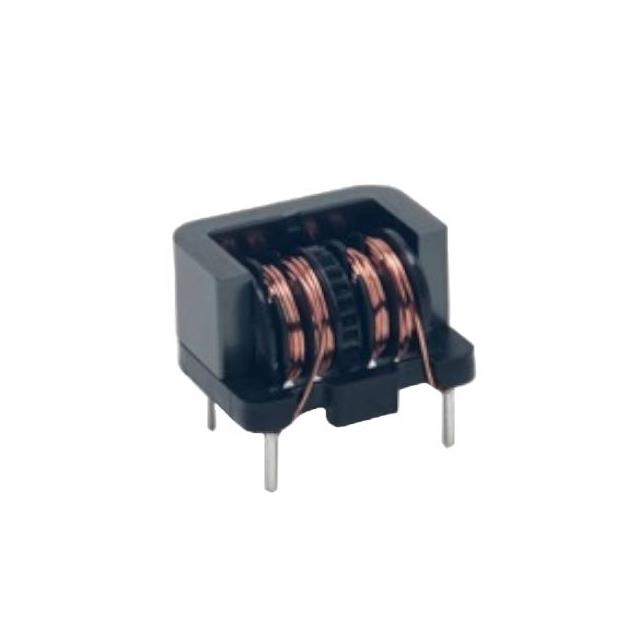

Image shown is a representation only
Manufacturer
Manufacturer No
SSRH7HS-M06185
Quantity
10
Availability
In Stock
Package
Vertical, 4 PC Pin
Packaging
Bulk
Description
CMC 18.5MH 600MA 2LN TH
Detailed Description
18.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 690mOhm
DataSheet
Series
SSRH7H-M
Packaging
Bulk
Part Status
Active
Height (Max)
0.472" (12.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
0.709" L x 0.571" W (18.00mm x 14.50mm)
Base Product Number
SSRH7HS
Voltage Rating - AC
250V
Current Rating (Max)
600mA
Operating Temperature
-25°C ~ 120°C
Inductance @ Frequency
18.5 mH @ 10 kHz
DC Resistance (DCR) (Max)
690mOhm
| Attribute | Value |
|---|---|
| Series | SSRH7H-M |
| Packaging | Bulk |
| Part Status | Active |
| Height (Max) | 0.472" (12.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.709" L x 0.571" W (18.00mm x 14.50mm) |
| Base Product Number | SSRH7HS |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 600mA |
| Operating Temperature | -25°C ~ 120°C |
| Inductance @ Frequency | 18.5 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 690mOhm |
