Step1: Product
KEMET SU9HF-05050

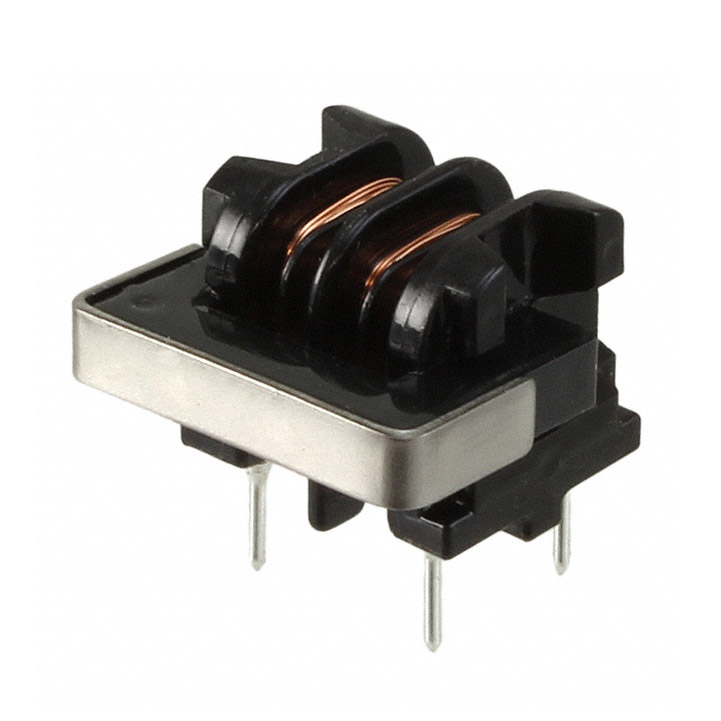

Image shown is a representation only
Manufacturer
Manufacturer No
SU9HF-05050
Quantity
100
Availability
In Stock
Package
Vertical, 4 PC Pin
Packaging
Bulk
Description
CMC 5MH 500MA 2LN TH
Detailed Description
5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.3Ohm
Datasheet
Series
SU
Packaging
Bulk
Filter Type
Power Line
Height (Max)
0.472" (12.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
0.669" L x 0.610" W (17.00mm x 15.50mm)
Base Product Number
SU9HF
Voltage Rating - AC
250V
Current Rating (Max)
500mA
Operating Temperature
-25°C ~ 120°C
Inductance @ Frequency
5 mH @ 1 kHz
DC Resistance (DCR) (Max)
1.3Ohm
| Attribute | Value |
|---|---|
| Series | SU |
| Packaging | Bulk |
| Filter Type | Power Line |
| Height (Max) | 0.472" (12.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.669" L x 0.610" W (17.00mm x 15.50mm) |
| Base Product Number | SU9HF |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 500mA |
| Operating Temperature | -25°C ~ 120°C |
| Inductance @ Frequency | 5 mH @ 1 kHz |
| DC Resistance (DCR) (Max) | 1.3Ohm |
