Step1: Product
KEMET SCT12X-030-0R5A019V

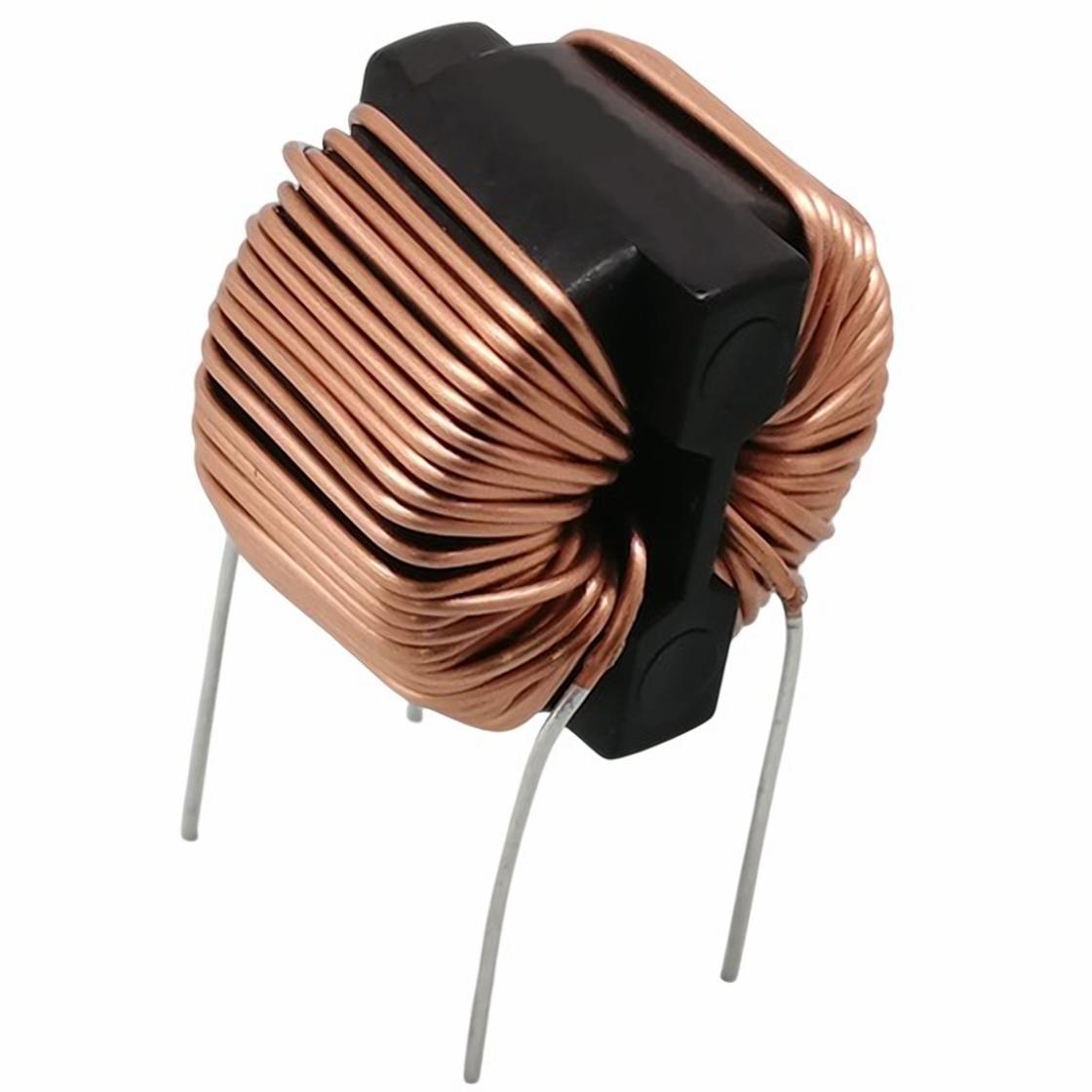

Image shown is a representation only
Manufacturer
Manufacturer No
SCT12X-030-0R5A019V
Package
Vertical, No Base, 4 PC Pin
Packaging
Tray
Description
IND COMMON MODE 1.15MH 3A
Detailed Description
1.18 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 50mOhm
DataSheet
Series
SCT12X
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
0.591" (15.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, No Base, 4 PC Pin
Number of Lines
2
Size / Dimension
0.610" L x 0.472" W (15.50mm x 12.00mm)
Voltage Rating - AC
250V
Voltage Rating - DC
320V
Current Rating (Max)
3A
Operating Temperature
-40°C ~ 130°C
Inductance @ Frequency
1.18 mH @ 100 kHz
DC Resistance (DCR) (Max)
50mOhm
| Attribute | Value |
|---|---|
| Series | SCT12X |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.591" (15.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.610" L x 0.472" W (15.50mm x 12.00mm) |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 320V |
| Current Rating (Max) | 3A |
| Operating Temperature | -40°C ~ 130°C |
| Inductance @ Frequency | 1.18 mH @ 100 kHz |
| DC Resistance (DCR) (Max) | 50mOhm |
