Step1: Product

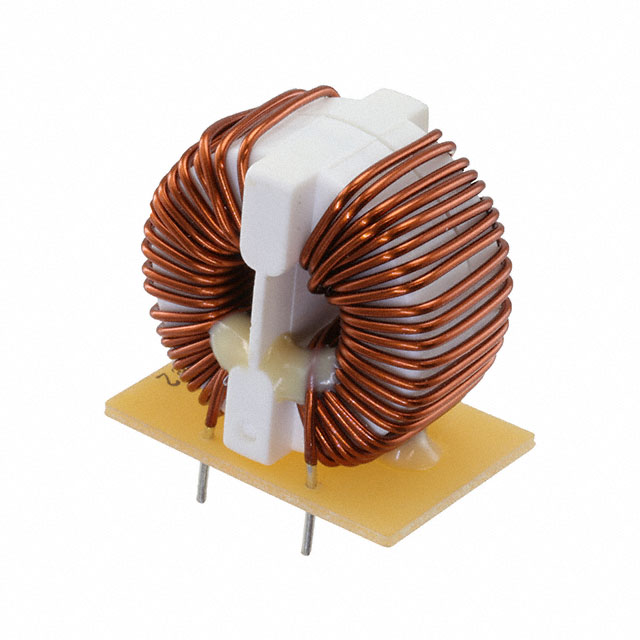

KEMET SC22-05-30J
Image shown is a representation only
Manufacturer
Manufacturer No
SC22-05-30J
Package
Vertical, 4 PC Pin
Packaging
Tray
Description
CMC 3MH 5A 2LN TH
Detailed Description
3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5A DCR 50mOhm
DataSheet
Series
SC-J
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
1.142" (29.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
1.102" L x 0.728" W (28.00mm x 18.50mm)
Base Product Number
SC22-05
Voltage Rating - AC
250V
Voltage Rating - DC
250V
Current Rating (Max)
5A
Operating Temperature
-40°C ~ 120°C
Inductance @ Frequency
3 mH @ 10 kHz
DC Resistance (DCR) (Max)
50mOhm
| Attribute | Value |
|---|---|
| Series | SC-J |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 1.142" (29.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 1.102" L x 0.728" W (28.00mm x 18.50mm) |
| Base Product Number | SC22-05 |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 250V |
| Current Rating (Max) | 5A |
| Operating Temperature | -40°C ~ 120°C |
| Inductance @ Frequency | 3 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 50mOhm |
