Step1: Product

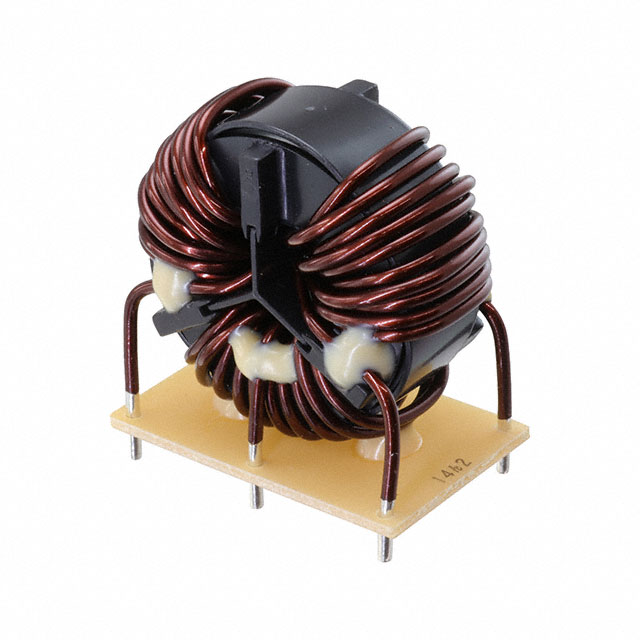

KEMET SC-20-SE10J
Image shown is a representation only
Manufacturer
Manufacturer No
SC-20-SE10J
Quantity
5
Availability
In Stock
Package
Vertical, 6 PC Pin
Packaging
Tray
Description
CMC 940UH 20A 3LN TH
Detailed Description
940 µH @ 10 kHz 3 Line Common Mode Choke Through Hole 20A DCR 7mOhm
DataSheet
Series
SC-J
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
2.008" (51.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, 6 PC Pin
Number of Lines
3
Size / Dimension
1.929" L x 1.181" W (49.00mm x 30.00mm)
Base Product Number
SC-20
Voltage Rating - AC
250V
Voltage Rating - DC
250V
Current Rating (Max)
20A
Operating Temperature
-40°C ~ 120°C
Inductance @ Frequency
940 µH @ 10 kHz
DC Resistance (DCR) (Max)
7mOhm
| Attribute | Value |
|---|---|
| Series | SC-J |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 2.008" (51.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 6 PC Pin |
| Number of Lines | 3 |
| Size / Dimension | 1.929" L x 1.181" W (49.00mm x 30.00mm) |
| Base Product Number | SC-20 |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 250V |
| Current Rating (Max) | 20A |
| Operating Temperature | -40°C ~ 120°C |
| Inductance @ Frequency | 940 µH @ 10 kHz |
| DC Resistance (DCR) (Max) | 7mOhm |
