Step1: Product
Johanson Technology Inc. 2450AD18A7250001E

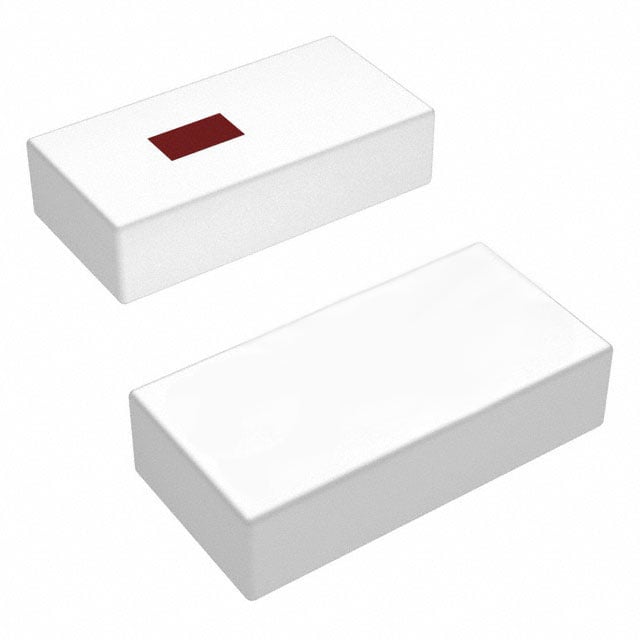

Image shown is a representation only
Manufacturer
Manufacturer No
2450AD18A7250001E
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
BT/WIFI AND UWB MINI ANTENNA, SI
Detailed Description
RF ANTENNA Bluetooth, UWB, Wi-Fi Chip Solder Surface Mount
DataSheet
Gain
3dBi, 5.5dBi
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
3 W
Return Loss
6.5dB
Termination
Solder
Antenna Type
Chip
Applications
Bluetooth, UWB, Wi-Fi
Height (Max)
0.020" (0.50mm)
Manufacturer
Johanson Technology Inc.
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.48GHz, 6GHz ~ 8.5GHz
Number of Bands
2
RF Family/Standard
Bluetooth, WiFi
Frequency (Center/Band)
2.44GHz, 7.25GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 5.5dBi |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 3 W |
| Return Loss | 6.5dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Bluetooth, UWB, Wi-Fi |
| Height (Max) | 0.020" (0.50mm) |
| Manufacturer | Johanson Technology Inc. |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.48GHz, 6GHz ~ 8.5GHz |
| Number of Bands | 2 |
| RF Family/Standard | Bluetooth, WiFi |
| Frequency (Center/Band) | 2.44GHz, 7.25GHz |
