Step1: Product
Johanson Technology Inc. 2450AD18A6050001E

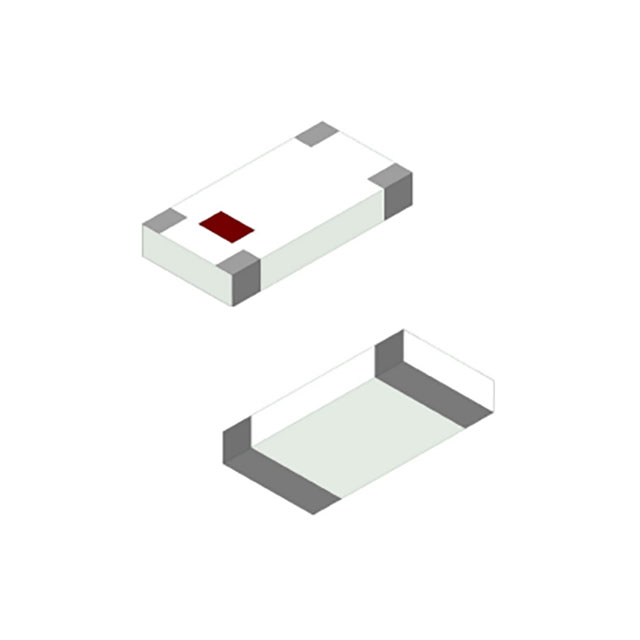

Image shown is a representation only
Manufacturer
Manufacturer No
2450AD18A6050001E
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ANT2.45 / 6.05 GHZ BT/WIFI
Detailed Description
RF ANTENNA Bluetooth, Wi-Fi6E Chip Solder Surface Mount
DataSheet
Gain
2dBi, 1.5dBi, 2.7dBi
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Power - Max
3 W
Return Loss
6dB, 5dB, 5dB
Termination
Solder
Antenna Type
Chip
Applications
Bluetooth, Wi-Fi6E
Height (Max)
0.024" (0.60mm)
Manufacturer
Johanson Technology Inc.
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.85GHz ~ 7.2GHz
Number of Bands
3
RF Family/Standard
Bluetooth, WiFi
Frequency (Center/Band)
2.45GHz, 5.375GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi, 1.5dBi, 2.7dBi |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Power - Max | 3 W |
| Return Loss | 6dB, 5dB, 5dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Bluetooth, Wi-Fi6E |
| Height (Max) | 0.024" (0.60mm) |
| Manufacturer | Johanson Technology Inc. |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.85GHz ~ 7.2GHz |
| Number of Bands | 3 |
| RF Family/Standard | Bluetooth, WiFi |
| Frequency (Center/Band) | 2.45GHz, 5.375GHz, 6.525GHz |
