Step1: Product

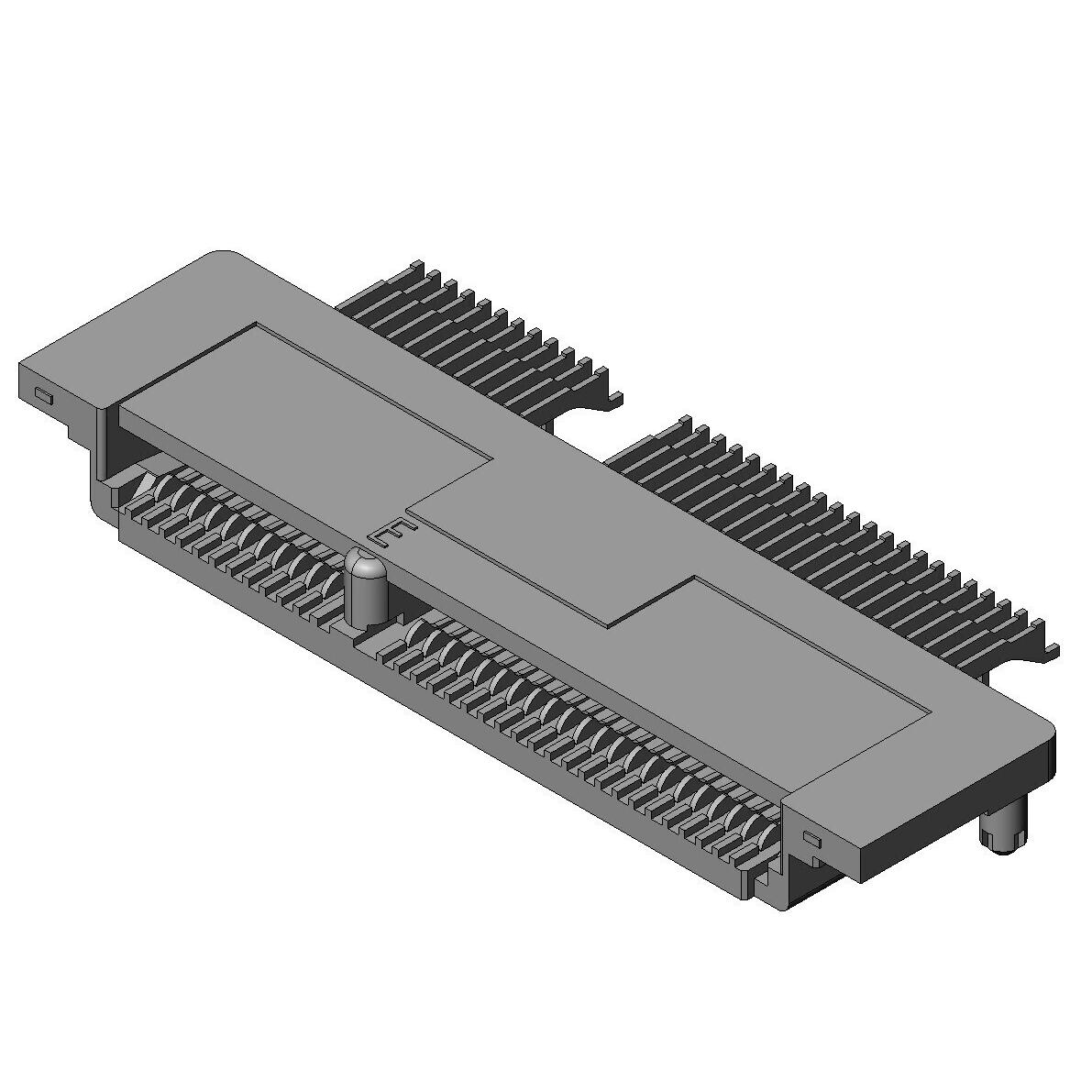

JAE Electronics SM3ZS067B120AE2R1500
Image shown is a representation only
Manufacturer
Manufacturer No
SM3ZS067B120AE2R1500
Packaging
Bulk
Description
Interconnect Rectangular
Detailed Description
67 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm)
Datasheet
Pitch
0.020" (0.50mm)
Gender
Female
Series
SM3
Features
Board Guide, Solder Retention
Read Out
Single
Card Type
Non Specified - Dual Edge
Packaging
Bulk
Termination
Solder
Manufacturer
JAE Electronics
Mounting Type
Free Hanging (In-Line)
Card Thickness
0.031" (0.79mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Number of Positions
67
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
5.11µin (0.130µm)
Number of Positions/Bay/Row
67
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Series | SM3 |
| Features | Board Guide, Solder Retention |
| Read Out | Single |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Mounting Type | Free Hanging (In-Line) |
| Card Thickness | 0.031" (0.79mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Number of Positions | 67 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 5.11µin (0.130µm) |
| Number of Positions/Bay/Row | 67 |
