Step1: Product

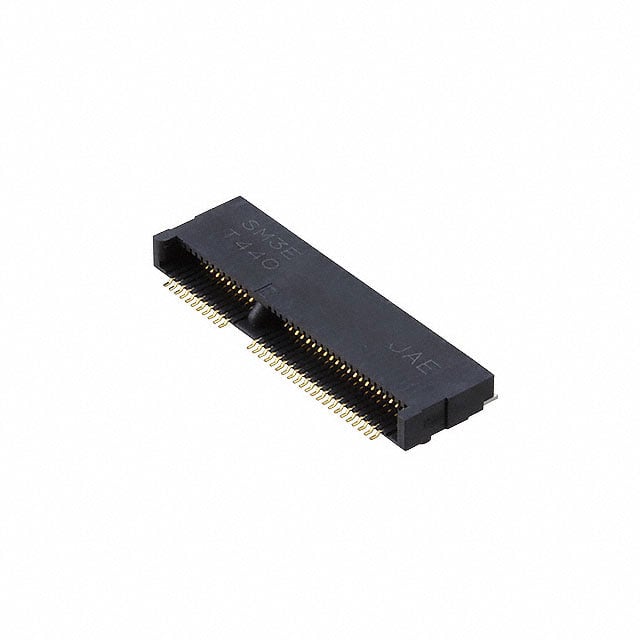

JAE Electronics SM3ZS067U215AER1500
Image shown is a representation only
Manufacturer
Manufacturer No
SM3ZS067U215AER1500
Quantity
43
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN M.2 FMALE 67POS 0.020 GOLD
Detailed Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm)
Datasheet
Pitch
0.020" (0.50mm)
Gender
Female
Series
SM3
Features
Board Guide
Read Out
Dual
Card Type
M.2 (NGFF) Mini Card
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
JAE Electronics
Mounting Type
Surface Mount, Right Angle
Card Thickness
0.031" (0.79mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
SM3ZS067
Number of Positions
67
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
5.11µin (0.130µm)
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Series | SM3 |
| Features | Board Guide |
| Read Out | Dual |
| Card Type | M.2 (NGFF) Mini Card |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | 0.031" (0.79mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | SM3ZS067 |
| Number of Positions | 67 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 5.11µin (0.130µm) |
