Step1: Product

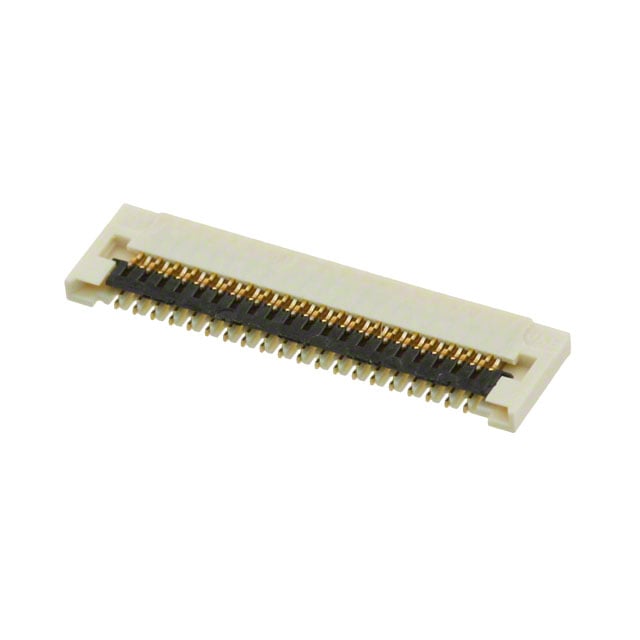

JAE Electronics FF02S40SV1-R3000
Image shown is a representation only
Manufacturer
Manufacturer No
FF02S40SV1-R3000
Date Code
0934
Quantity
6,000
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN FPC BOTTOM 40POS 0.3MM R/A
Detailed Description
40 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
Pitch
0.012" (0.30mm)
Series
FF02S
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR)
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
White
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Polyphenylene Sulfide (PPS)
FFC, FCB Thickness
0.12mm
Height Above Board
0.035" (0.88mm)
Number of Positions
40
Current Rating (Amps)
0.35A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | FF02S |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | White |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.035" (0.88mm) |
| Number of Positions | 40 |
| Current Rating (Amps) | 0.35A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
