Step1: Product
JAE Electronics FA5B016HP1R3000

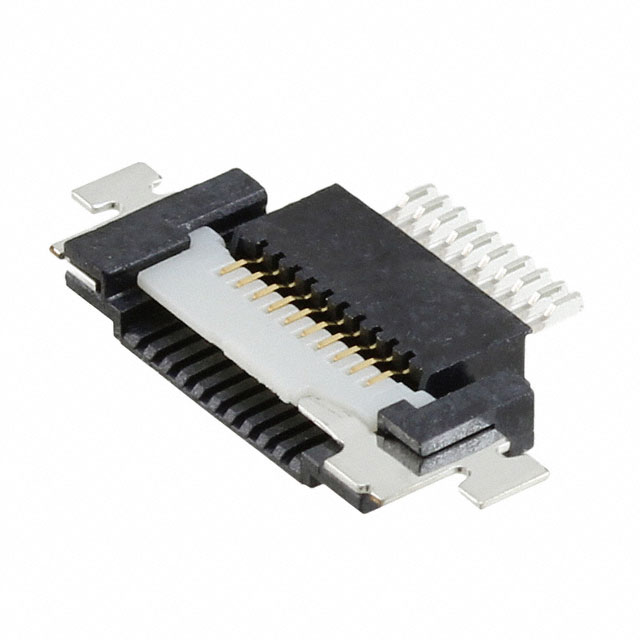

Image shown is a representation only
Manufacturer
Manufacturer No
FA5B016HP1R3000
Packaging
Bulk
Description
Interconnect Circular
Detailed Description
16 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Board Edge, Cutout
Datasheet
Pitch
0.020" (0.50mm)
Series
FA5
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Bulk
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
Black
Mating Cycles
20
Mounting Type
Board Edge, Cutout
Actuator Color
White
Contact Finish
Tin
Flat Flex Type
FPC
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.057" (1.45mm)
Number of Positions
16
Current Rating (Amps)
0.8A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FA5 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Bulk |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Board Edge, Cutout |
| Actuator Color | White |
| Contact Finish | Tin |
| Flat Flex Type | FPC |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.057" (1.45mm) |
| Number of Positions | 16 |
| Current Rating (Amps) | 0.8A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
