Step1: Product

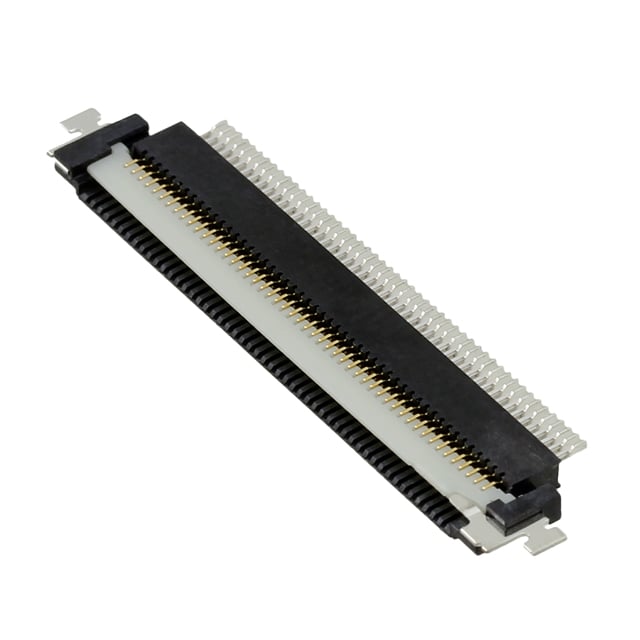

JAE Electronics FA5B050HP1
Image shown is a representation only
Manufacturer
Manufacturer No
FA5B050HP1
Packaging
Tray
Description
CONN FPC BOTTOM 50POS 0.5MM SMD
Detailed Description
50 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Board Edge, Cutout
DataSheet
Pitch
0.020" (0.50mm)
Series
FA5
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tray
Part Status
Obsolete
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
Black
Mating Cycles
20
Mounting Type
Board Edge, Cutout
Actuator Color
White
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Base Product Number
FA5B050H
Number of Positions
50
Current Rating (Amps)
0.8A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FA5 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tray |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Board Edge, Cutout |
| Actuator Color | White |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Base Product Number | FA5B050H |
| Number of Positions | 50 |
| Current Rating (Amps) | 0.8A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
