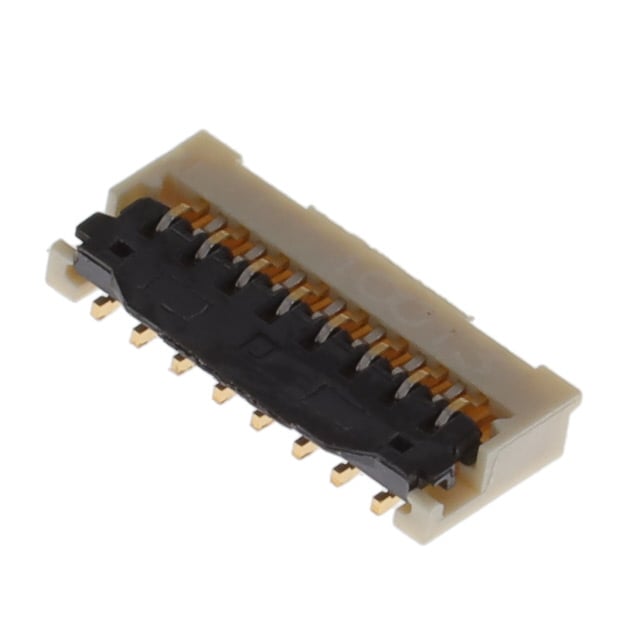

JAE Electronics FB10S015JT1R6000
Image shown is a representation only
Manufacturer
Manufacturer No
FB10S015JT1R6000
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC BOTTOM 15POS 0.3MM R/A
Detailed Description
15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Pitch
0.012" (0.30mm)
Series
FB10
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Obsolete
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
White
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed or Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Plastic
Actuator Material
Plastic
FFC, FCB Thickness
0.20mm
Height Above Board
0.035" (0.88mm)
Base Product Number
FB10S015
Number of Positions
15
Current Rating (Amps)
0.35A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
1.25µin (0.03µm)
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | FB10 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | White |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed or Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Base Product Number | FB10S015 |
| Number of Positions | 15 |
| Current Rating (Amps) | 0.35A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 1.25µin (0.03µm) |
