JAE Electronics FA5S030HP1

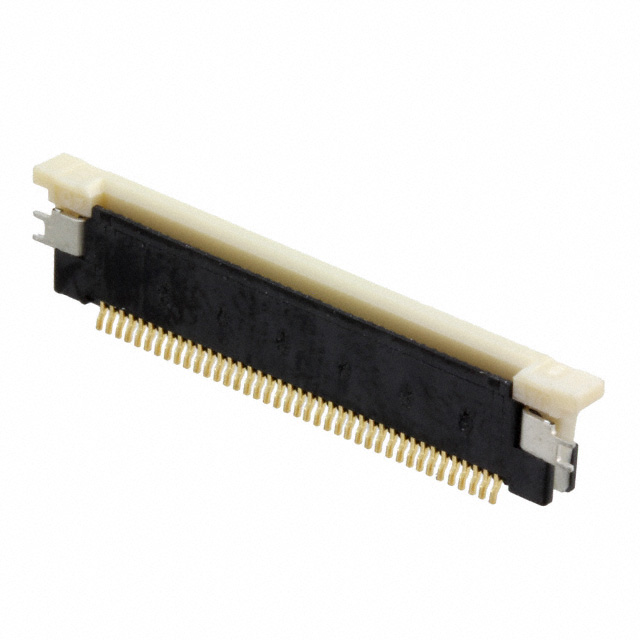

Image shown is a representation only
Manufacturer
Manufacturer No
FA5S030HP1
Packaging
Tray
Description
CONN FPC BOTTOM 30POS 0.5MM R/A
Detailed Description
30 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Pitch
0.020" (0.50mm)
Series
FA5
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tray
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
White
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.057" (1.45mm)
Base Product Number
FA5S030H
Number of Positions
30
Current Rating (Amps)
0.8A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FA5 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tray |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | White |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.057" (1.45mm) |
| Base Product Number | FA5S030H |
| Number of Positions | 30 |
| Current Rating (Amps) | 0.8A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
