Step1: Product

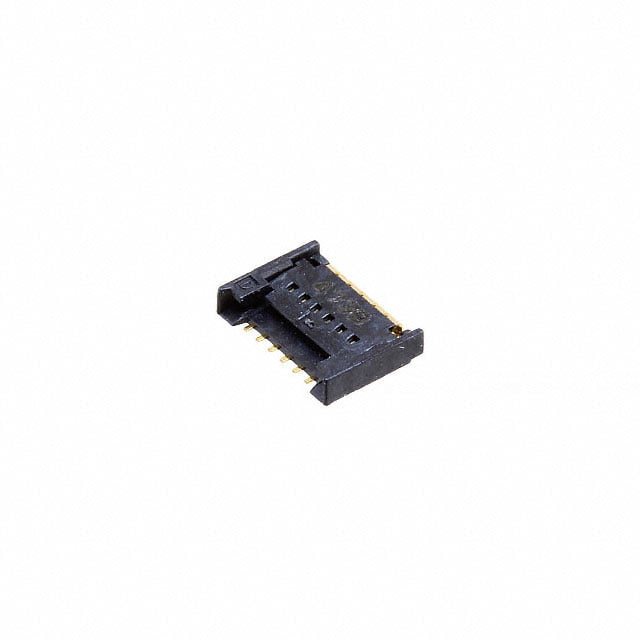

JAE Electronics FA1006SA1-R8000
Image shown is a representation only
Manufacturer
Manufacturer No
FA1006SA1-R8000
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FPC 6POS 0.5MM R/A
Detailed Description
6 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
FA10
Features
Low Insertion Force (LIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
JAE Electronics
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Contact Material
Copper Alloy
Housing Material
Plastic
Actuator Material
Plastic
FFC, FCB Thickness
0.20mm
Height Above Board
0.035" (0.88mm)
Base Product Number
FA1006SA
Number of Positions
6
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FA10 |
| Features | Low Insertion Force (LIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Base Product Number | FA1006SA |
| Number of Positions | 6 |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
