Step1: Product

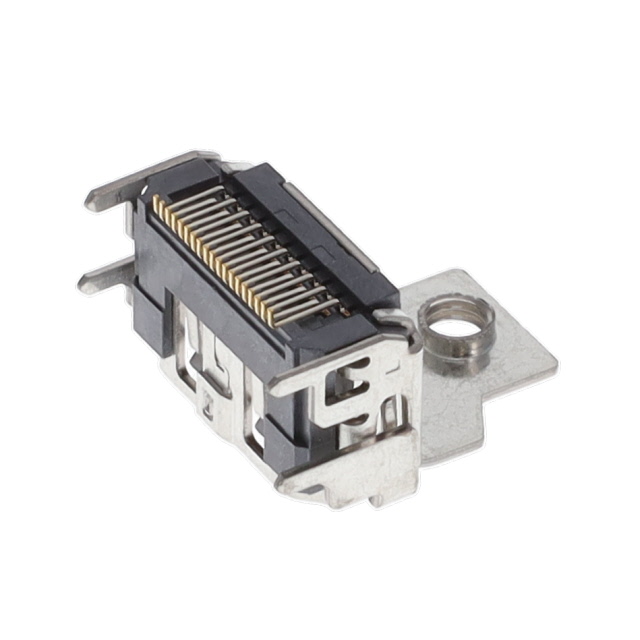

JAE Electronics DC1RS19JAX
Image shown is a representation only
Manufacturer
Manufacturer No
DC1RS19JAX
Packaging
Tray
Description
CONN HDMI A RCPT 19 POS R/A
Detailed Description
HDMI Receptacle Connector 19 Position Panel Mount; Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Series
DC1
Features
Board Guide
Packaging
Tray
Shielding
Shielded
Part Status
Obsolete
Termination
Solder
Manufacturer
JAE Electronics
Mounting Type
Panel Mount; Surface Mount, Right Angle; Through Hole
Connector Type
HDMI
Contact Finish
Gold
Number of Ports
1
Insulation Color
Black
Mounting Feature
Flange, Horizontal
Number of Contacts
19
Base Product Number
DC1RS19J
Operating Temperature
-20°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | DC1 |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Shielded |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole |
| Connector Type | HDMI |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Insulation Color | Black |
| Mounting Feature | Flange, Horizontal |
| Number of Contacts | 19 |
| Base Product Number | DC1RS19J |
| Operating Temperature | -20°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
