Step1: Product

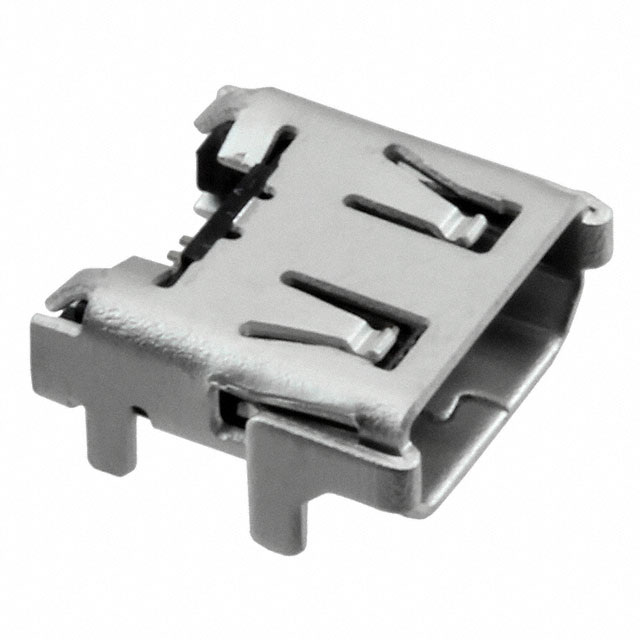

JAE Electronics DC3RX19JA3R1700
Image shown is a representation only
Manufacturer
Manufacturer No
DC3RX19JA3R1700
Quantity
1676
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCP MICRO HDMI 19POS SMD RA
Detailed Description
HDMI - Micro Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Series
DC3
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
JAE Electronics
Mating Cycles
5000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
HDMI - Micro
Contact Finish
Gold
Number of Ports
1
Insulation Color
Black
Mounting Feature
Horizontal
Number of Contacts
19
Base Product Number
DC3RX19J
Current Rating (Amps)
0.3A per Contact
Operating Temperature
-20°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | DC3 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | JAE Electronics |
| Mating Cycles | 5000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | HDMI - Micro |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Number of Contacts | 19 |
| Base Product Number | DC3RX19J |
| Current Rating (Amps) | 0.3A per Contact |
| Operating Temperature | -20°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
