Step1: Product

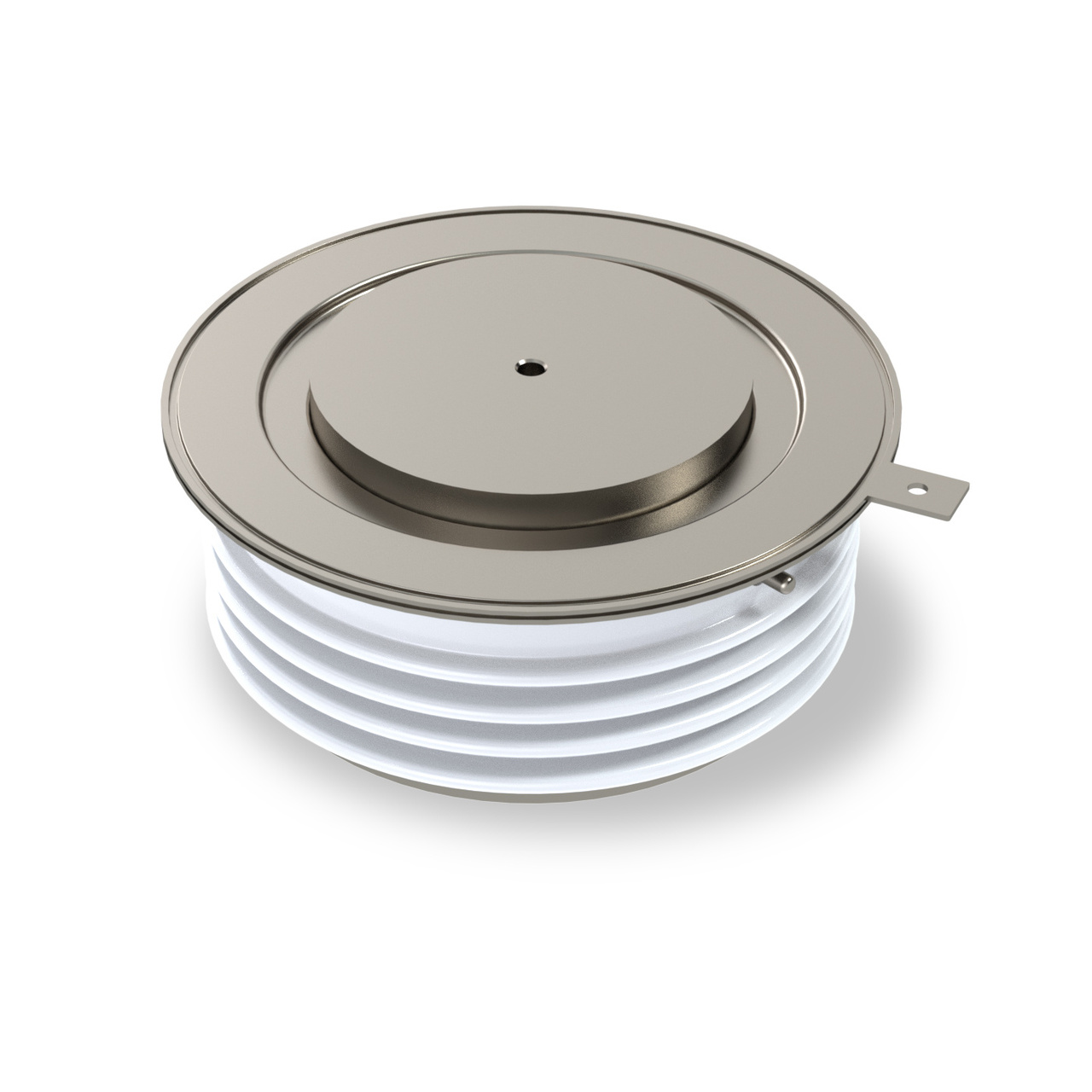

IXYS N0634LC420
Image shown is a representation only
Manufacturer
Manufacturer No
N0634LC420
Package
TO-200AB, B-PuK
Packaging
Box
Description
SCR 4.2KV 1228A W10
Detailed Description
SCR 4.2 kV 1228 A Standard Recovery Chassis Mount W10
DataSheet
SCR Type
Standard Recovery
Packaging
Box
Part Status
Active
Manufacturer
IXYS
Mounting Type
Chassis Mount
Package / Case
TO-200AB, B-PuK
Base Product Number
N0634
Voltage - Off State
4.2 kV
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
W10
Current - Hold (Ih) (Max)
1 A
Current - Off State (Max)
100 mA
Voltage - On State (Vtm) (Max)
2.8 V
Current - Gate Trigger (Igt) (Max)
300 mA
Current - On State (It (AV)) (Max)
634 A
Voltage - Gate Trigger (Vgt) (Max)
3 V
Current - On State (It (RMS)) (Max)
1228 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
7700A @ 50Hz
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Box |
| Part Status | Active |
| Manufacturer | IXYS |
| Mounting Type | Chassis Mount |
| Package / Case | TO-200AB, B-PuK |
| Base Product Number | N0634 |
| Voltage - Off State | 4.2 kV |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | W10 |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Off State (Max) | 100 mA |
| Voltage - On State (Vtm) (Max) | 2.8 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Current - On State (It (AV)) (Max) | 634 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 1228 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 7700A @ 50Hz |
