IXYS MMIX4G20N250

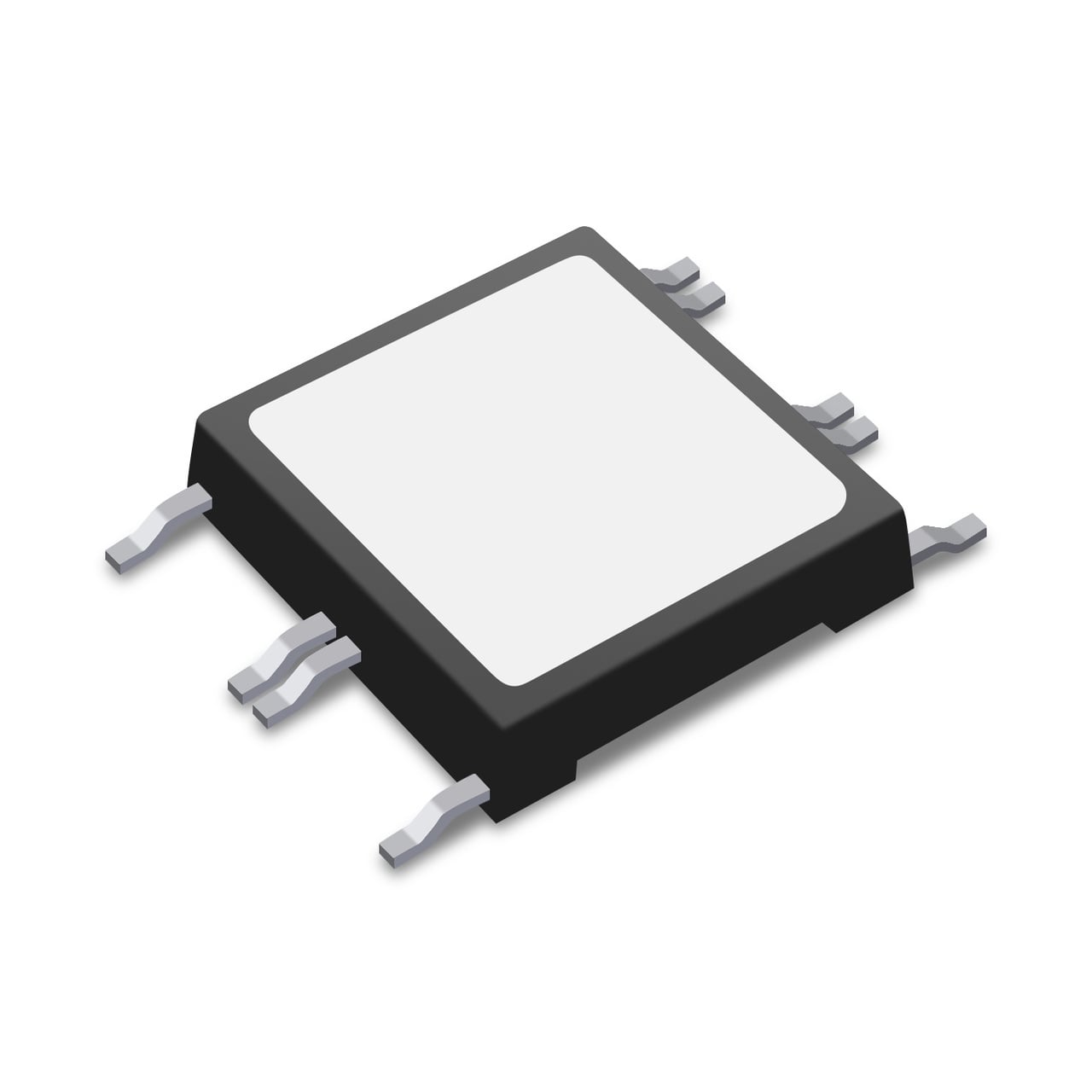

Image shown is a representation only
Manufacturer
Manufacturer No
MMIX4G20N250
Package
24-SMD Module, 9 Leads
Packaging
Tube
Description
IGBT ARR FBRIDGE 2500V 23A 24SMD
Detailed Description
IGBT Array Full Bridge 2500 V 23 A 100 W Surface Mount 24-SMPD
DataSheet
Input
Standard
Packaging
Tube
Part Status
Obsolete
Power - Max
100 W
Manufacturer
IXYS
Configuration
Full Bridge
Mounting Type
Surface Mount
NTC Thermistor
No
Package / Case
24-SMD Module, 9 Leads
Base Product Number
MMIX4G20
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
24-SMPD
Vce(on) (Max) @ Vge, Ic
3.1V @ 15V, 20A
Current - Collector (Ic) (Max)
23 A
Input Capacitance (Cies) @ Vce
1.19 nF @ 15 V
Current - Collector Cutoff (Max)
10 µA
Voltage - Collector Emitter Breakdown (Max)
2500 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Packaging | Tube |
| Part Status | Obsolete |
| Power - Max | 100 W |
| Manufacturer | IXYS |
| Configuration | Full Bridge |
| Mounting Type | Surface Mount |
| NTC Thermistor | No |
| Package / Case | 24-SMD Module, 9 Leads |
| Base Product Number | MMIX4G20 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 24-SMPD |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 20A |
| Current - Collector (Ic) (Max) | 23 A |
| Input Capacitance (Cies) @ Vce | 1.19 nF @ 15 V |
| Current - Collector Cutoff (Max) | 10 µA |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V |
