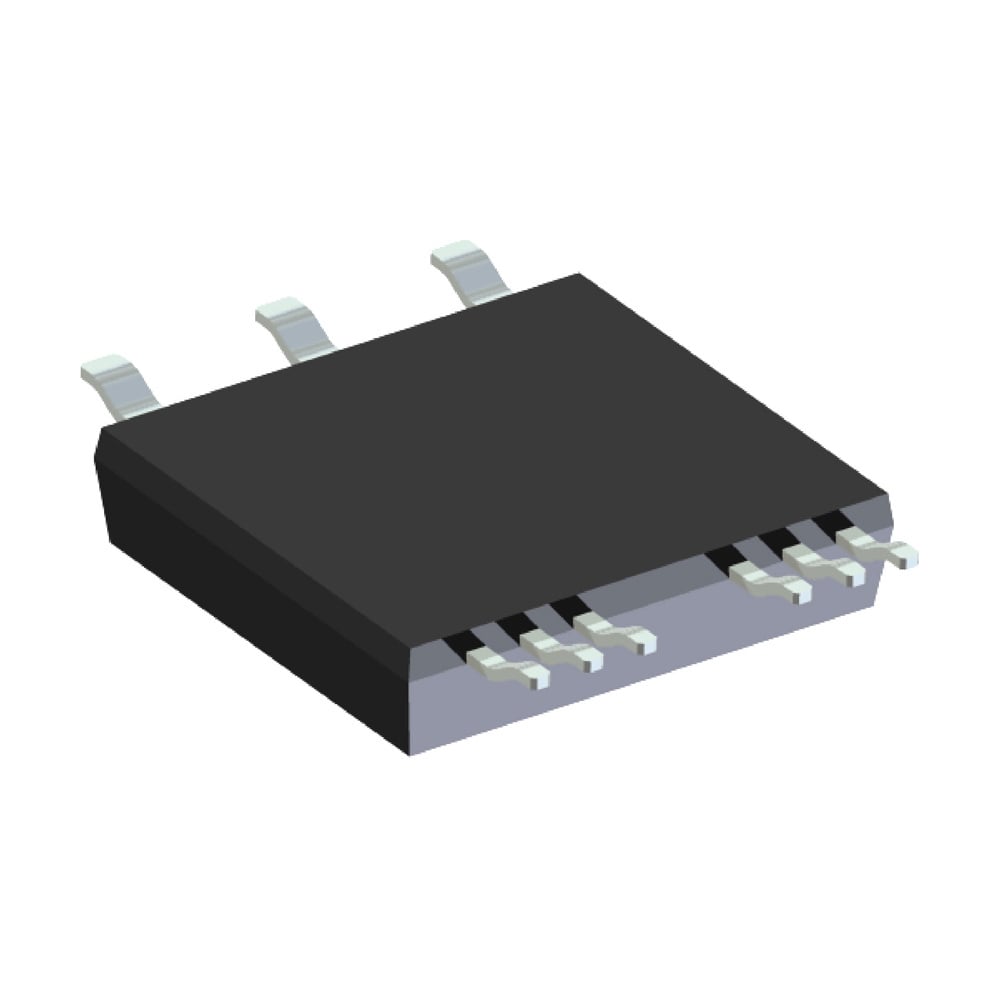

IXYS IXA40PG1200DHG-TRR
Image shown is a representation only
Manufacturer
Manufacturer No
IXA40PG1200DHG-TRR
Package
9-SMD Module
Packaging
Tape & Reel (TR)
Description
IGBT ARR H BRIDGE 1200V 63A 9SMD
Detailed Description
IGBT Array PT Half Bridge 1200 V 63 A 230 W Surface Mount ISOPLUS-SMPD™.B
DataSheet
Input
Standard
IGBT Type
PT
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Power - Max
230 W
Manufacturer
IXYS
Configuration
Half Bridge
Mounting Type
Surface Mount
NTC Thermistor
No
Package / Case
9-SMD Module
Base Product Number
IXA40
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
ISOPLUS-SMPD™.B
Vce(on) (Max) @ Vge, Ic
2.15V @ 15V, 35A
Current - Collector (Ic) (Max)
63 A
Current - Collector Cutoff (Max)
150 µA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Standard |
| IGBT Type | PT |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Power - Max | 230 W |
| Manufacturer | IXYS |
| Configuration | Half Bridge |
| Mounting Type | Surface Mount |
| NTC Thermistor | No |
| Package / Case | 9-SMD Module |
| Base Product Number | IXA40 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | ISOPLUS-SMPD™.B |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 35A |
| Current - Collector (Ic) (Max) | 63 A |
| Current - Collector Cutoff (Max) | 150 µA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
