Step1: Product

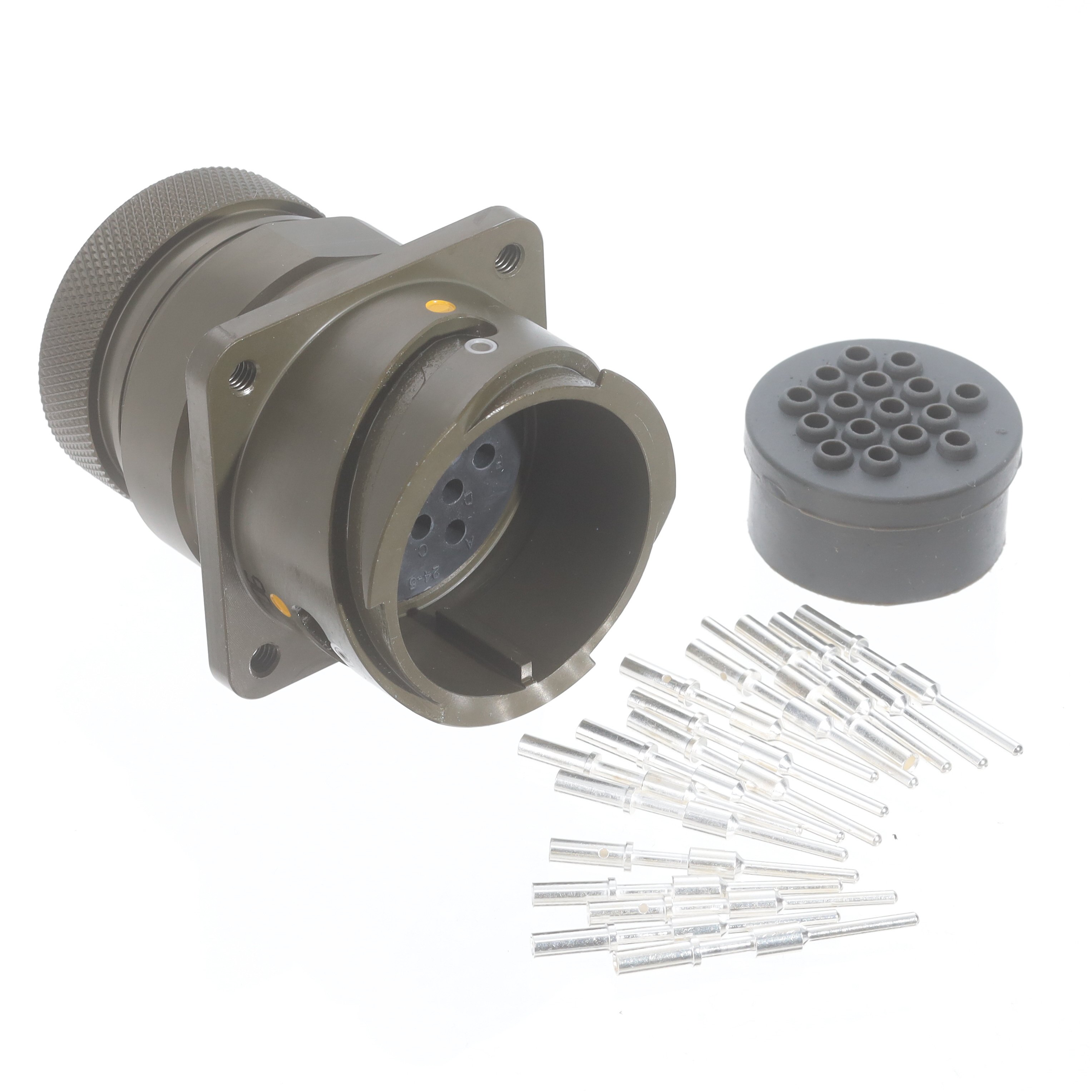

ITT Cannon, LLC CIR030G2-24-5P-F80
Image shown is a representation only
Manufacturer
Manufacturer No
CIR030G2-24-5P-F80
Packaging
Bag
Description
VEAM CIR, VBN, OTHER
Detailed Description
16 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
ITT Cannon, LLC
Color
Olive Drab
Series
CIR
Features
Backshell, Heat Shrink Adapter
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aerospace, Medical, Military
Shell Finish
Olive Drab Cadmium
Cable Opening
0.980" (24.90mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
500VAC, 700VDC
Insert Material
Neoprene
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Proof
Number of Positions
16
Shell Size - Insert
24-5
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Series | CIR |
| Features | Backshell, Heat Shrink Adapter |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Medical, Military |
| Shell Finish | Olive Drab Cadmium |
| Cable Opening | 0.980" (24.90mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 500VAC, 700VDC |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Proof |
| Number of Positions | 16 |
| Shell Size - Insert | 24-5 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
