Step1: Product
ITG Electronics, Inc. AHA47475C-100K

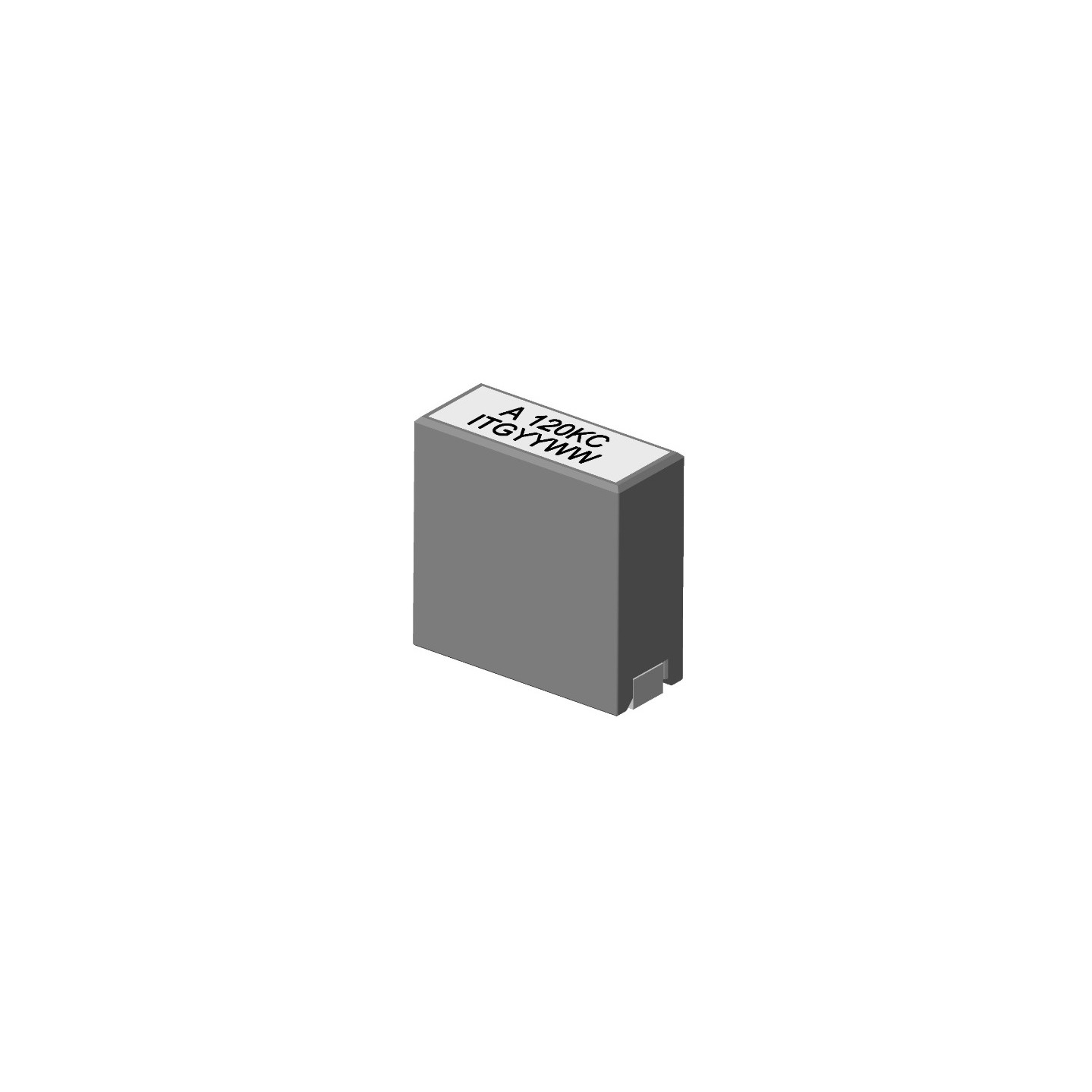

Image shown is a representation only
Manufacturer
Manufacturer No
AHA47475C-100K
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
TLVR 100.0nH 0.125mOhm 105.0A
Detailed Description
Shielded 2 Coil Inductor Array Inductance - Connected in Series 100 nH Inductance - Connected in Parallel 0.125mOhm DC Resistance (DCR) - Parallel 75 A Nonstandard
DataSheet
Height
0.472" (12.00mm)
Series
AHA47475C
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±10%
Part Status
Active
Manufacturer
ITG Electronics, Inc.
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.472" L x 0.197" W (12.00mm x 5.00mm)
Operating Temperature
-55°C ~ 130°C
Current Rating - Parallel
75 A
Current Saturation - Parallel
105 A
DC Resistance (DCR) - Parallel
0.125mOhm
Inductance - Connected In Parallel
100 nH
| Attribute | Value |
|---|---|
| Height | 0.472" (12.00mm) |
| Series | AHA47475C |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±10% |
| Part Status | Active |
| Manufacturer | ITG Electronics, Inc. |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.472" L x 0.197" W (12.00mm x 5.00mm) |
| Operating Temperature | -55°C ~ 130°C |
| Current Rating - Parallel | 75 A |
| Current Saturation - Parallel | 105 A |
| DC Resistance (DCR) - Parallel | 0.125mOhm |
| Inductance - Connected In Parallel | 100 nH |
