ITG Electronics, Inc. AHA3747A-100L

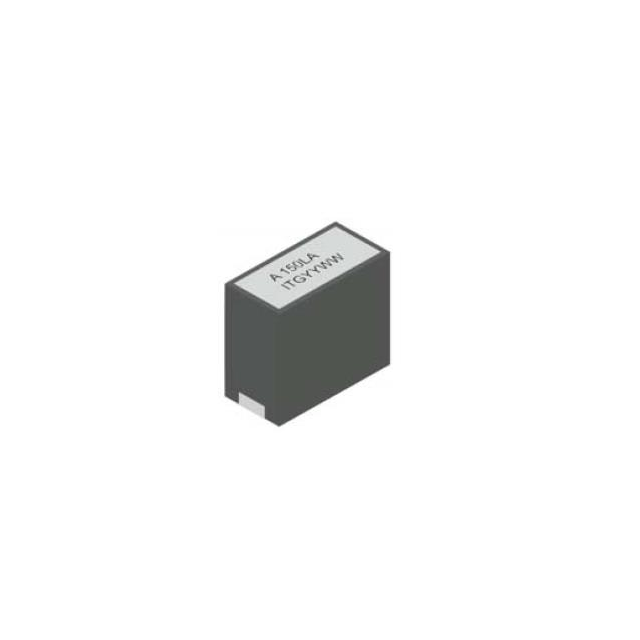

Image shown is a representation only
Manufacturer
Manufacturer No
AHA3747A-100L
Packaging
Tape & Reel (TR)
Description
Coupling Inductor for TLVR, 100.
Detailed Description
Shielded 2 Coil Inductor Array Inductance - Connected in Series 100 nH Inductance - Connected in Parallel 0.145mOhm DC Resistance (DCR) - Parallel 110 A
DataSheet
Height
0.472" (12.00mm)
Series
AHA3747A
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±15%
Part Status
Active
Manufacturer
ITG Electronics, Inc.
Mounting Type
Surface Mount
Number of Coils
2
Size / Dimension
0.378" L x 0.252" W (9.60mm x 6.40mm)
Operating Temperature
-55°C ~ 130°C
Current Rating - Parallel
110 A
Current Saturation - Parallel
110 A
DC Resistance (DCR) - Parallel
0.145mOhm
Inductance - Connected In Parallel
100 nH
| Attribute | Value |
|---|---|
| Height | 0.472" (12.00mm) |
| Series | AHA3747A |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±15% |
| Part Status | Active |
| Manufacturer | ITG Electronics, Inc. |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Size / Dimension | 0.378" L x 0.252" W (9.60mm x 6.40mm) |
| Operating Temperature | -55°C ~ 130°C |
| Current Rating - Parallel | 110 A |
| Current Saturation - Parallel | 110 A |
| DC Resistance (DCR) - Parallel | 0.145mOhm |
| Inductance - Connected In Parallel | 100 nH |
