Step1: Product
Isocom Components 2004 LTD ICPL2601G

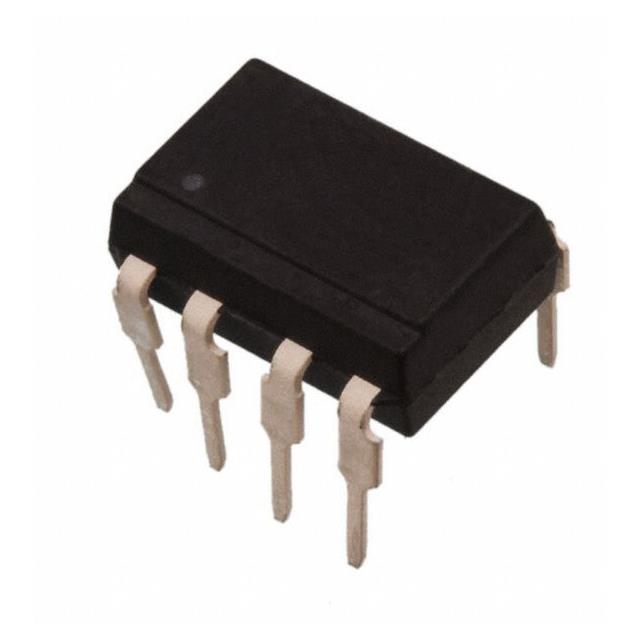

Image shown is a representation only
Manufacturer
Manufacturer No
ICPL2601G
Package
8-DIP (0.400", 10.16mm)
Packaging
Tube
Description
OPTOISOLTR 2.5KV OPEN COLL 8-DIP
Detailed Description
Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 2500Vrms 1 Channel 1kV/µs CMTI 8-DIP
Datasheet
Series
ICPL2601
Data Rate
10Mbps
Packaging
Tube
Input Type
DC
Output Type
Open Collector, Schottky Clamped
Manufacturer
Isocom Components 2004 LTD
Mounting Type
Through Hole
Package / Case
8-DIP (0.400", 10.16mm)
Voltage - Supply
7V
Number of Channels
1
Voltage - Isolation
2500Vrms
Operating Temperature
0°C ~ 70°C
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-DIP
Current - Output / Channel
25 mA
Voltage - Forward (Vf) (Typ)
1.55V
Current - DC Forward (If) (Max)
20mA
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Common Mode Transient Immunity (Min)
1kV/µs
| Attribute | Value |
|---|---|
| Series | ICPL2601 |
| Data Rate | 10Mbps |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Manufacturer | Isocom Components 2004 LTD |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Voltage - Supply | 7V |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Operating Temperature | 0°C ~ 70°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-DIP |
| Current - Output / Channel | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Common Mode Transient Immunity (Min) | 1kV/µs |
