Step1: Product

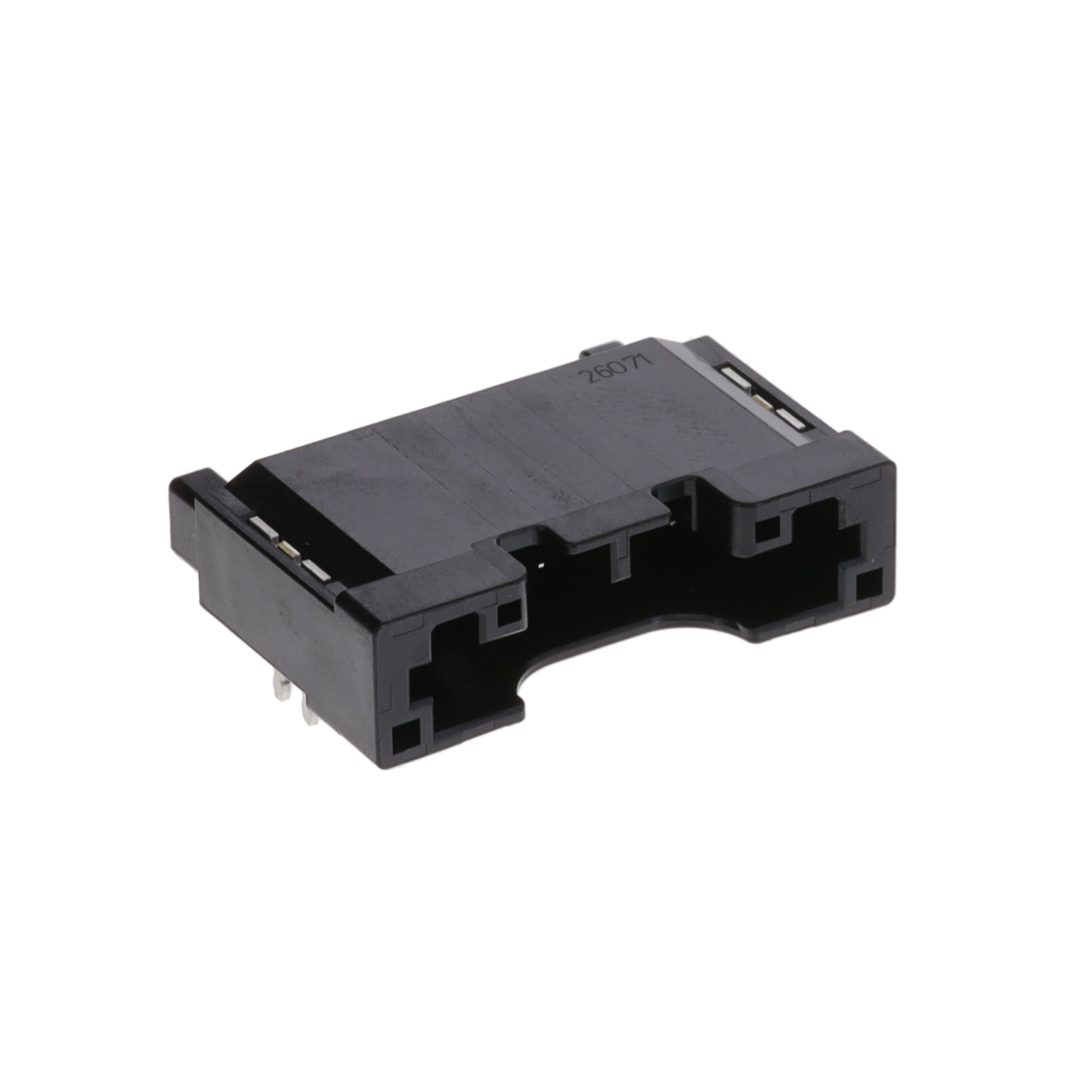

IRISO USA Inc. IMSA-13103B-08Y900
Image shown is a representation only
Manufacturer
Manufacturer No
IMSA-13103B-08Y900
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
HEADER SMT RA 8POS KEY-A
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Datasheet
Mfr
IRISO USA Inc.
Style
Board to Cable/Wire
Series
13103B
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
50VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.256" (6.50mm)
Base Product Number
IMSA-13103B
Insulation Material
Polyphenylene Sulfide (PPS)
Number of Positions
8
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | IRISO USA Inc. |
| Style | Board to Cable/Wire |
| Series | 13103B |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 50VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.256" (6.50mm) |
| Base Product Number | IMSA-13103B |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 8 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
