Step1: Product

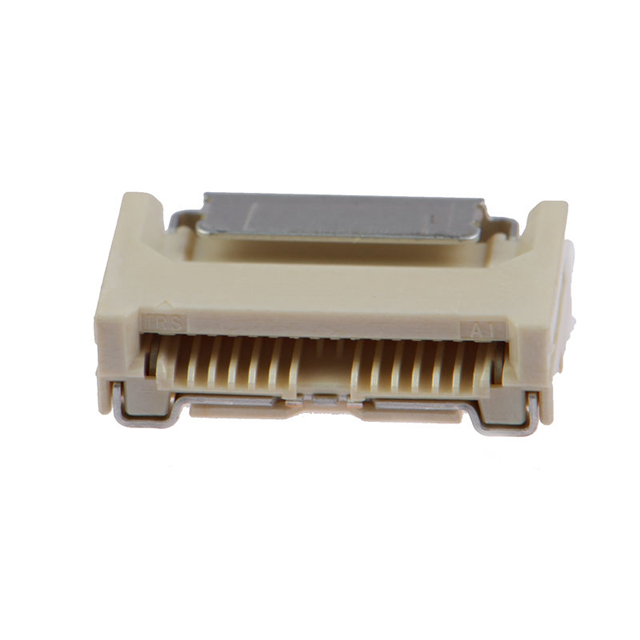

IRISO USA Inc. IMSA-11501S-15D-GFN1
Image shown is a representation only
Manufacturer
Manufacturer No
IMSA-11501S-15D-GFN1
Quantity
1
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 15POS 0.5MM R/A
Detailed Description
15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
11501
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Termination
Solder
Manufacturer
IRISO USA Inc.
Mounting Type
Surface Mount, Right Angle
Cable End Type
Notched
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP)
FFC, FCB Thickness
0.30mm
Height Above Board
0.134" (3.40mm)
Base Product Number
IMSA-115
Number of Positions
15
Current Rating (Amps)
0.5A
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | 11501 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | IRISO USA Inc. |
| Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Notched |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.134" (3.40mm) |
| Base Product Number | IMSA-115 |
| Number of Positions | 15 |
| Current Rating (Amps) | 0.5A |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
