Step1: Product
Inventchip IV1D06004P3

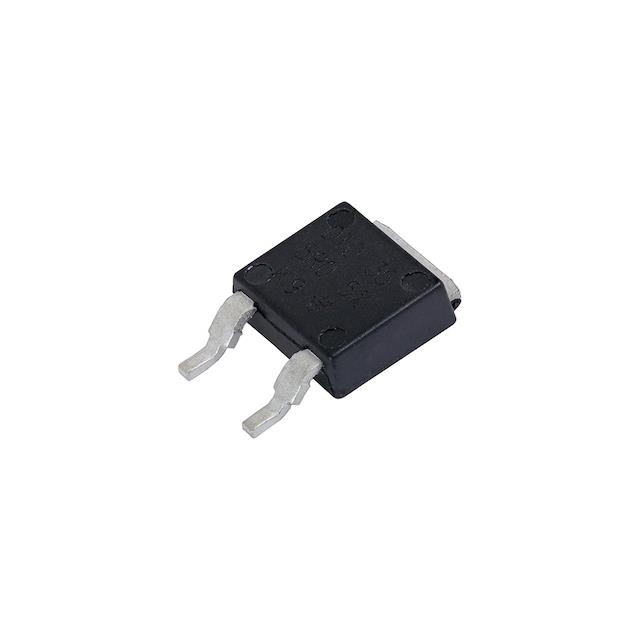

Image shown is a representation only
Manufacturer
Manufacturer No
IV1D06004P3
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tube
Description
DIODE SIL CARB 650V 4A TO252-3
Detailed Description
Diode 650 V 12.7A Surface Mount TO-252
DataSheet
Mfr
Inventchip
Speed
Zero Recovery Time > 500mA (Io)
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Capacitance @ Vr, F
140pF @ 1V, 1MHz
Supplier Device Package
TO-252
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
10 µA @ 650 V
Voltage - DC Reverse (Vr) (Max)
650 V
Current - Average Rectified (Io)
12.7A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.65 V @ 4 A
| Attribute | Value |
|---|---|
| Mfr | Inventchip |
| Speed | Zero Recovery Time > 500mA (Io) |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Capacitance @ Vr, F | 140pF @ 1V, 1MHz |
| Supplier Device Package | TO-252 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 12.7A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V @ 4 A |
