Step1: Product
Inventchip IV3D12020T2

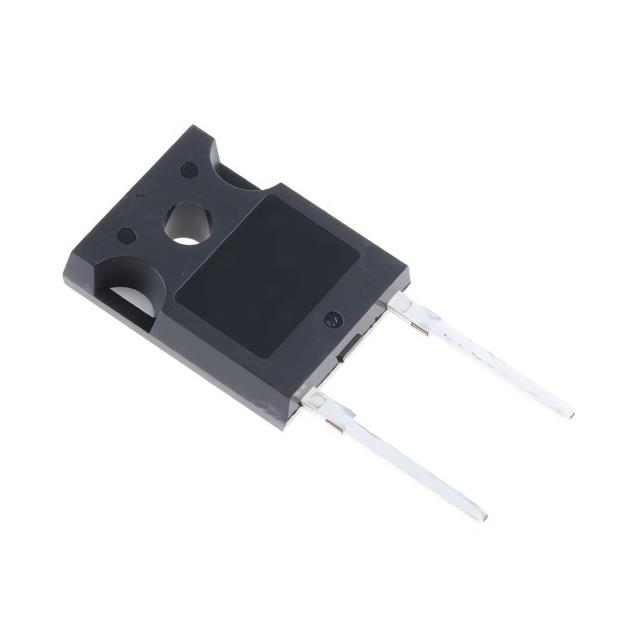

Image shown is a representation only
Manufacturer
Manufacturer No
IV3D12020T2
Package
TO-247-2
Packaging
Tube
Description
DIODE SIL CARB 1200V 20A TO247-2
Detailed Description
Diode 1200 V 54A Through Hole TO-247-2
Datasheet
Mfr
Inventchip
Speed
Zero Recovery Time > 500mA (Io)
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Mounting Type
Through Hole
Package / Case
TO-247-2
Capacitance @ Vr, F
1114pF @ 1V, 1MHz
Supplier Device Package
TO-247-2
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
120 µA @ 1200 V
Voltage - DC Reverse (Vr) (Max)
1200 V
Current - Average Rectified (Io)
54A
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
1.8 V @ 20 A
| Attribute | Value |
|---|---|
| Mfr | Inventchip |
| Speed | Zero Recovery Time > 500mA (Io) |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Capacitance @ Vr, F | 1114pF @ 1V, 1MHz |
| Supplier Device Package | TO-247-2 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 120 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 54A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
