Step1: Product

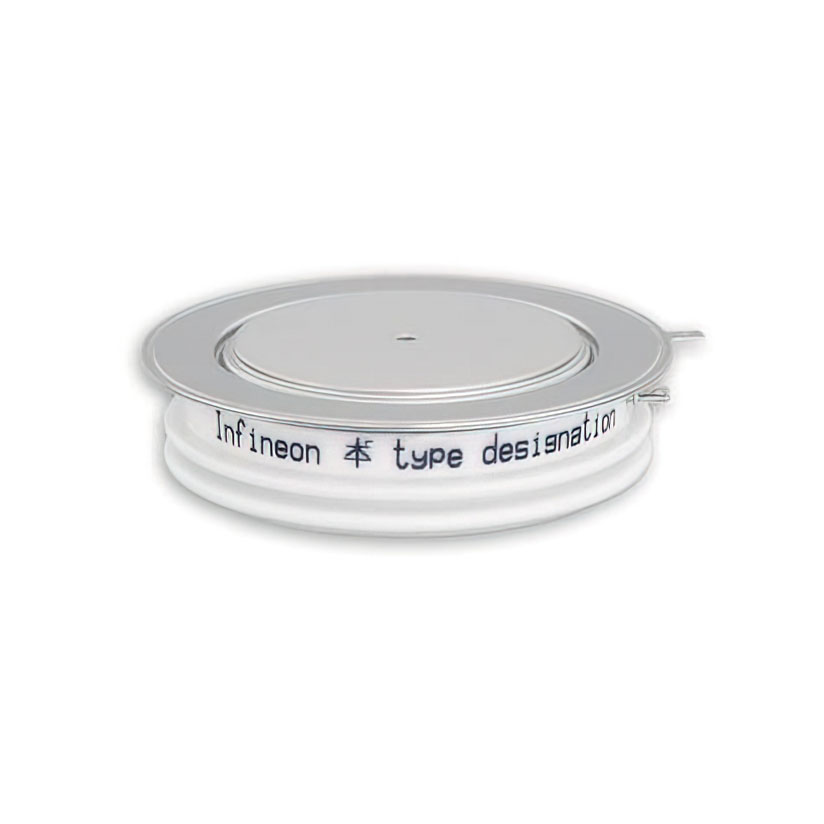

Infineon Technologies T2200N16H100XPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
T2200N16H100XPSA1
Package
TO-200AE
Packaging
Tray
Description
SCR 1.6KV 5020A BG-T10026K-1
Detailed Description
SCR 1.6 kV 5020 A Standard Recovery Chassis Mount BG-T10026K-1
Datasheet
SCR Type
Standard Recovery
Packaging
Tray
Manufacturer
Infineon Technologies
Mounting Type
Chassis Mount
Package / Case
TO-200AE
Voltage - Off State
1.6 kV
Operating Temperature
125°C (TJ)
Supplier Device Package
BG-T10026K-1
Current - Hold (Ih) (Max)
300 mA
Current - Off State (Max)
250 mA
Voltage - On State (Vtm) (Max)
1.24 V
Current - Gate Trigger (Igt) (Max)
250 mA
Current - On State (It (AV)) (Max)
3200 A
Voltage - Gate Trigger (Vgt) (Max)
2 V
Current - On State (It (RMS)) (Max)
5020 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
44000A @ 50Hz
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Tray |
| Manufacturer | Infineon Technologies |
| Mounting Type | Chassis Mount |
| Package / Case | TO-200AE |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | 125°C (TJ) |
| Supplier Device Package | BG-T10026K-1 |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Off State (Max) | 250 mA |
| Voltage - On State (Vtm) (Max) | 1.24 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - On State (It (AV)) (Max) | 3200 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 5020 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 44000A @ 50Hz |
