Step1: Product
Infineon Technologies ETZ1100N16P70HPSA1

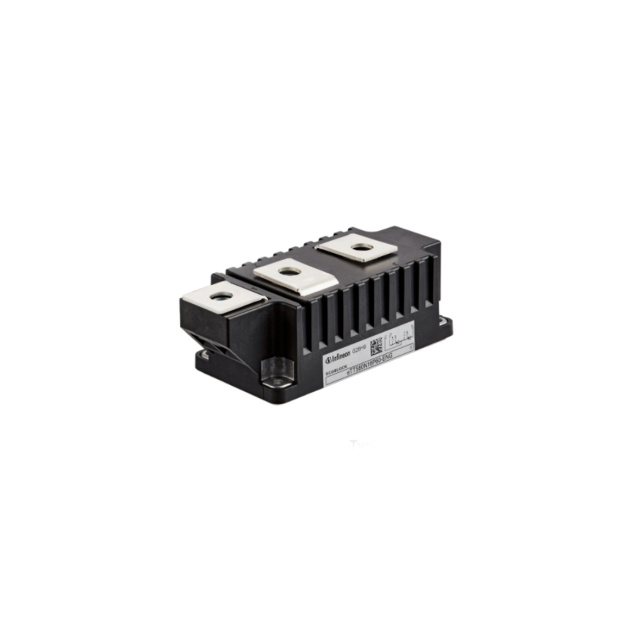

Image shown is a representation only
Manufacturer
Manufacturer No
ETZ1100N16P70HPSA1
Package
Module
Packaging
Tray
Description
SCR 1.6KV 1000A BG-PB70ECO-1
Detailed Description
SCR 1.6 kV 1000 A Standard Recovery Chassis Mount BG-PB70ECO-1
DataSheet
SCR Type
Standard Recovery
Packaging
Tray
Part Status
Obsolete
Manufacturer
Infineon Technologies
Mounting Type
Chassis Mount
Package / Case
Module
Base Product Number
ETZ1100
Voltage - Off State
1.6 kV
Operating Temperature
135°C (TJ)
Supplier Device Package
BG-PB70ECO-1
Current - Hold (Ih) (Max)
500 mA
Voltage - On State (Vtm) (Max)
1.52 V
Current - Gate Trigger (Igt) (Max)
250 mA
Current - On State (It (AV)) (Max)
1051 A
Voltage - Gate Trigger (Vgt) (Max)
2 V
Current - On State (It (RMS)) (Max)
1000 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
33600A @ 50Hz
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Tray |
| Part Status | Obsolete |
| Manufacturer | Infineon Technologies |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Base Product Number | ETZ1100 |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | 135°C (TJ) |
| Supplier Device Package | BG-PB70ECO-1 |
| Current - Hold (Ih) (Max) | 500 mA |
| Voltage - On State (Vtm) (Max) | 1.52 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - On State (It (AV)) (Max) | 1051 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 1000 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33600A @ 50Hz |
