Step1: Product
Infineon Technologies IRFH7787TRPBF

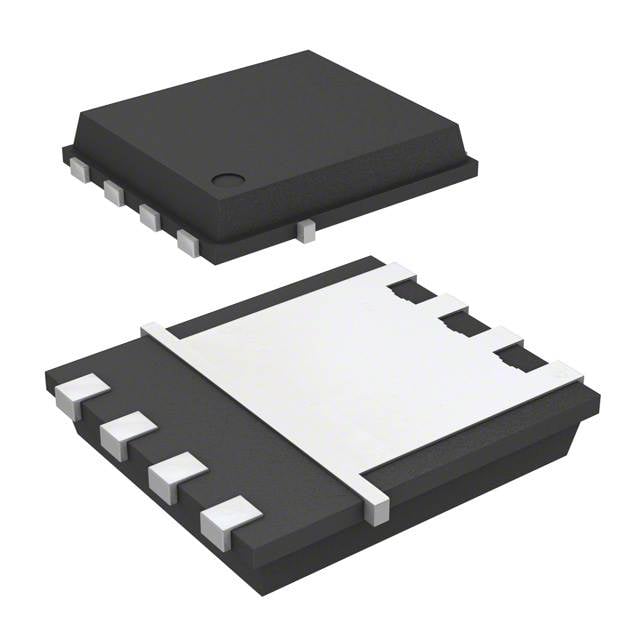

Image shown is a representation only
Manufacturer
Manufacturer No
IRFH7787TRPBF
Quantity
10
Availability
In Stock
Package
8-PowerTDFN
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 75V 68A PQFN
Detailed Description
N-Channel 75 V 68A (Tc) 83W (Tc) Surface Mount PQFN (5x6)
DataSheet
Mfr
Infineon Technologies
Series
HEXFET®, StrongIRFET™
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
3.7V @ 100µA
Base Product Number
IRFH7787
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
8mOhm @ 41A, 10V
Power Dissipation (Max)
83W (Tc)
Supplier Device Package
PQFN (5x6)
Gate Charge (Qg) (Max) @ Vgs
110 nC @ 10 V
Drain to Source Voltage (Vdss)
75 V
Input Capacitance (Ciss) (Max) @ Vds
4030 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Current - Continuous Drain (Id) @ 25°C
68A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Series | HEXFET®, StrongIRFET™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 3.7V @ 100µA |
| Base Product Number | IRFH7787 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 41A, 10V |
| Power Dissipation (Max) | 83W (Tc) |
| Supplier Device Package | PQFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 75 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4030 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 68A (Tc) |
