Step1: Product
Infineon Technologies IRF6617TRPBF

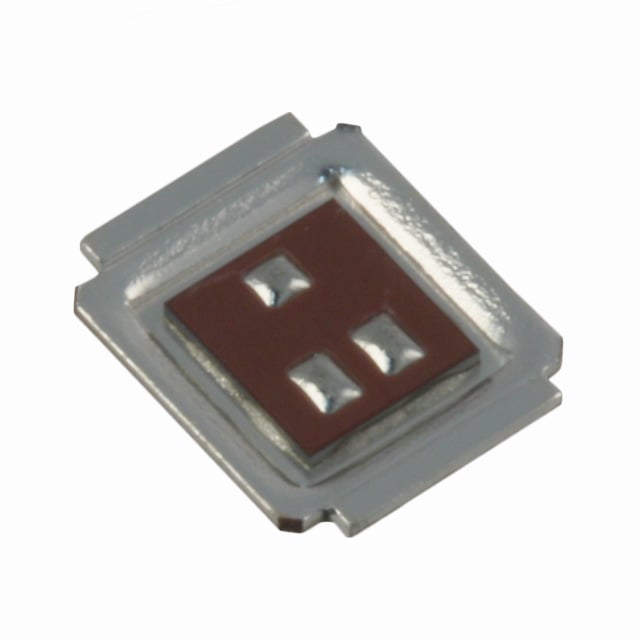

Image shown is a representation only
Manufacturer
Manufacturer No
IRF6617TRPBF
Quantity
20
Availability
In Stock
Package
DirectFET™ Isometric ST
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 30V 14A DIRECTFET
Detailed Description
N-Channel 30 V 14A (Ta), 55A (Tc) 2.1W (Ta), 42W (Tc) Surface Mount DIRECTFET™ ST
DataSheet
Mfr
Infineon Technologies
Series
HEXFET®
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
DirectFET™ Isometric ST
Vgs(th) (Max) @ Id
2.35V @ 250µA
Base Product Number
IRF6617
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
8.1mOhm @ 15A, 10V
Power Dissipation (Max)
2.1W (Ta), 42W (Tc)
Supplier Device Package
DIRECTFET™ ST
Gate Charge (Qg) (Max) @ Vgs
17 nC @ 4.5 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
1300 pF @ 15 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
14A (Ta), 55A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Series | HEXFET® |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | DirectFET™ Isometric ST |
| Vgs(th) (Max) @ Id | 2.35V @ 250µA |
| Base Product Number | IRF6617 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8.1mOhm @ 15A, 10V |
| Power Dissipation (Max) | 2.1W (Ta), 42W (Tc) |
| Supplier Device Package | DIRECTFET™ ST |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 55A (Tc) |
