Infineon Technologies IR22381QPBF

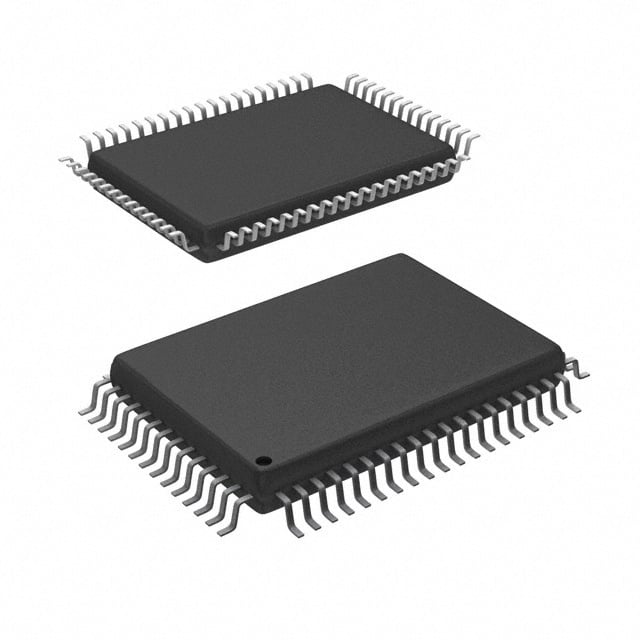

Image shown is a representation only
Manufacturer
Manufacturer No
IR22381QPBF
Package
64-BQFP
Packaging
Tray
Description
IC GATE DRVR HALF-BRIDGE 64MQFP
Detailed Description
Half-Bridge Gate Driver IC Inverting, Non-Inverting 64-MQFP (20x14)
DataSheet
Gate Type
IGBT
Packaging
Tray
Input Type
Inverting, Non-Inverting
Part Status
Obsolete
Channel Type
3-Phase
Manufacturer
Infineon Technologies
Mounting Type
Surface Mount
Package / Case
64-BQFP
Voltage - Supply
12.5V ~ 20V
Number of Drivers
6
Base Product Number
IR22381
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
80ns, 25ns
Supplier Device Package
64-MQFP (20x14)
Logic Voltage - VIL, VIH
0.8V, 2V
High Side Voltage - Max (Bootstrap)
1200 V
Current - Peak Output (Source, Sink)
350mA, 540mA
| Attribute | Value |
|---|---|
| Gate Type | IGBT |
| Packaging | Tray |
| Input Type | Inverting, Non-Inverting |
| Part Status | Obsolete |
| Channel Type | 3-Phase |
| Manufacturer | Infineon Technologies |
| Mounting Type | Surface Mount |
| Package / Case | 64-BQFP |
| Voltage - Supply | 12.5V ~ 20V |
| Number of Drivers | 6 |
| Base Product Number | IR22381 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 80ns, 25ns |
| Supplier Device Package | 64-MQFP (20x14) |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Current - Peak Output (Source, Sink) | 350mA, 540mA |
